Vanguard G4 PAPR Powered Air Purifying Respirator

Vanguard G4 Powered Air Purifying Respirator (PAPR)

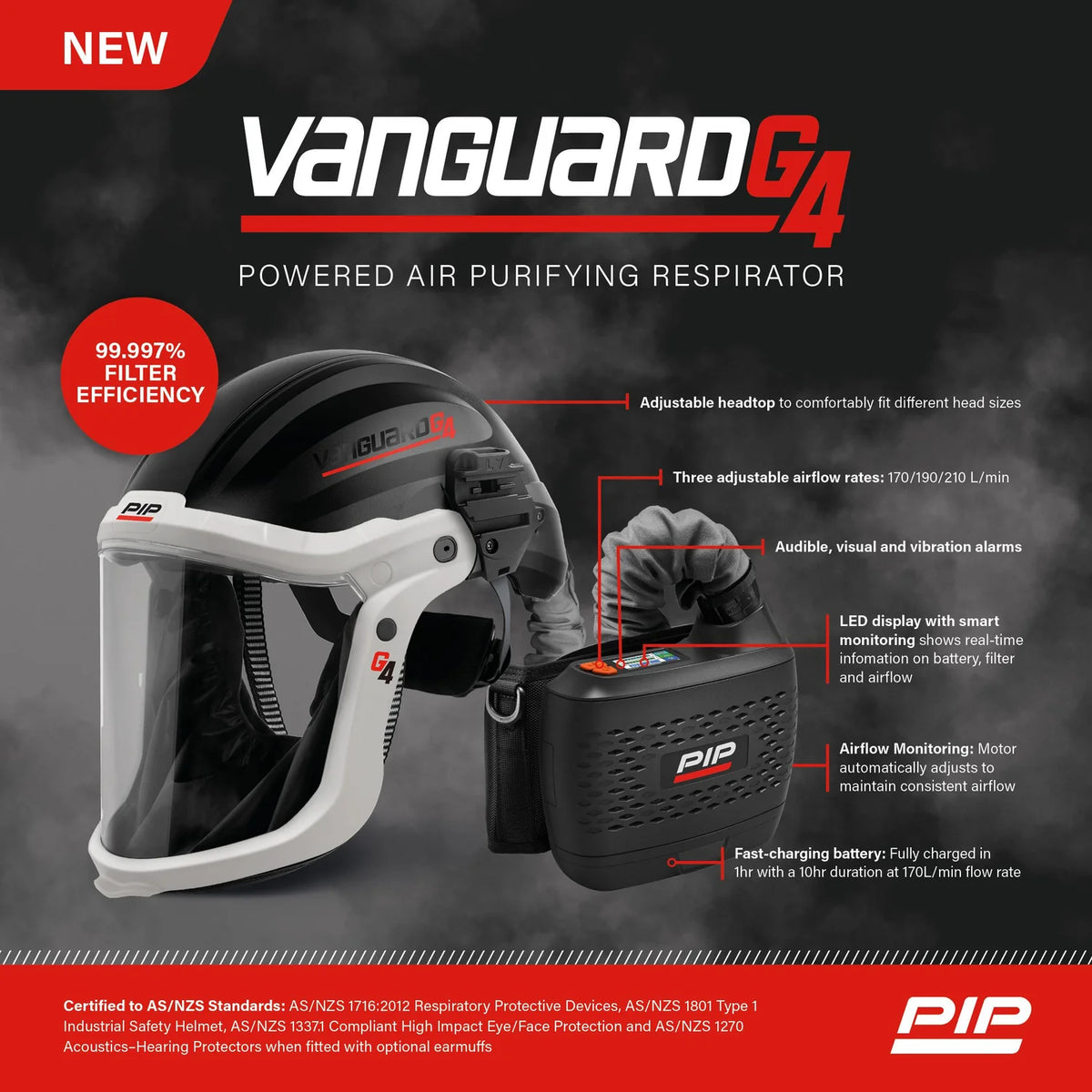

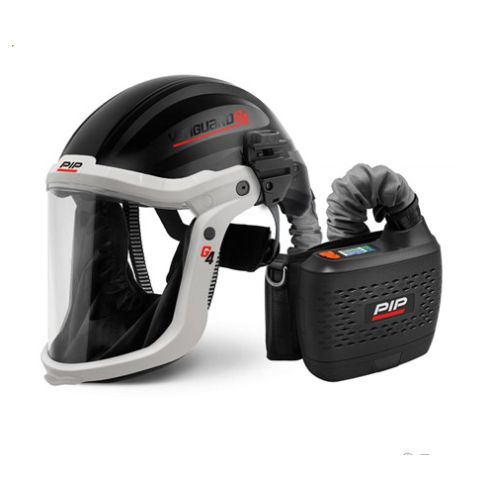

The Vanguard G4 Powered Air Purifying Respirator (PAPR) combines powered respiratory protection with integrated head, eye and face protection for the most demanding industrial environments.

A battery powered blower draws air through the integrated filter system and continuously supplies filtered air to the headtop. Unlike a conventional respirator where the wearer draws air through the filter, the powered airflow reduces breathing resistance and provides a steady flow of air for greater comfort during extended use.

Supplied with a P3 particulate filter offering 99.997% filtration efficiency, the G4 is suited to appropriately assessed applications involving hazardous dust and particulates, including grinding, sanding, silica and general fabrication work.

Features:

Integrated protection: combines respiratory, head, eye and face protection in one system

Approximately 10 hours runtime at 170 L/min with the standard battery

Quick charge lithium battery -80% in 1 hour, full charge 3 hours

P3 particulate filtration: 99.997% filtration efficiency against airborne particulates

Powered airflow: reduces the effort required to breathe through a filter

Selectable airflow rates: 170, 190 and 210 L/min

Dynamic airflow control compensates for filter loading and battery condition

Digital display shows airflow, battery status, filter loading, filter type and usage time

Audible, visual and vibration warnings alert the wearer to low airflow, low battery or filter issues

Optional gas and vapour filters available for applications requiring additional protection

Applications:

Welding and metal fabrication

Grinding and sanding

Silica dust

General industrial respiratory protection

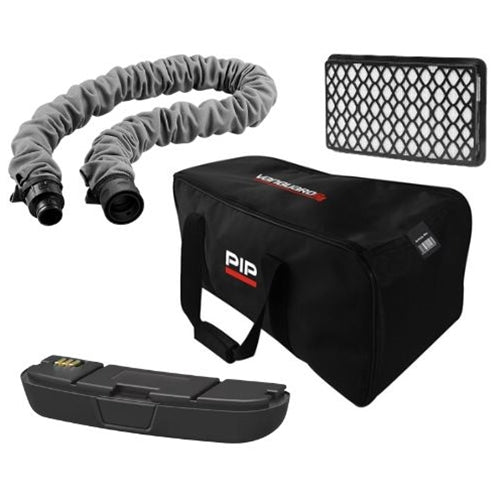

What's Included:

Vanguard G4 helmet, including PAPR Blower and air hose

P3 particulate filter and pre-filter

3200mAh lithium battery + charger

Flow meter

Storage bag

Standards:

AS/NZS 1716:2012 - Respiratory Protective Devices

AS/NZS 1801 Type 1 - Industrial Safety Helmet

AS/NZS 1337.1 - High Impact Eye / Face Protection

IMPORTANT NOTE

The supplied P3 filter is for particulate protection and does not provide gas or vapour protection.

For use with Organic Vapours the Multi-Gas Filter should be added.

For protection against Nuisance Odours the Nuisance Odour Filter should be added.

Protection will only be offered if Vanguard G4 PAPR is fitted correctly.

Respiratory protection must be selected according to the specific workplace hazard and used with the correct filters and components.

Always follow Vanguard’s operating instructions and applicable workplace respiratory protection requirements.
