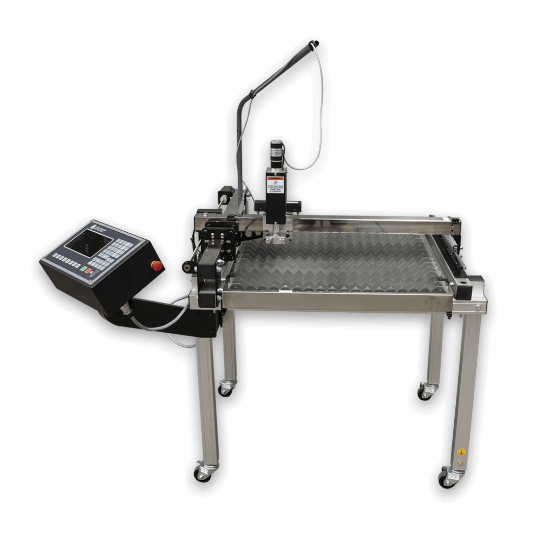

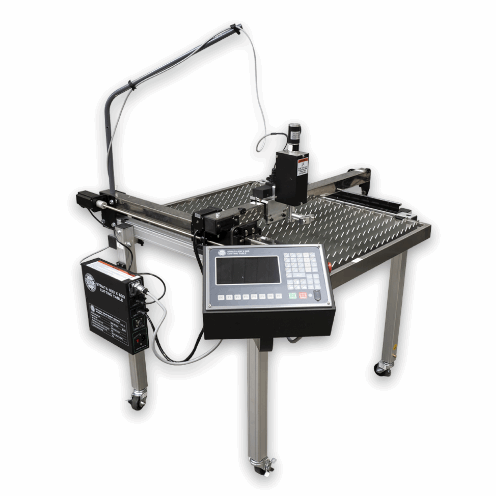

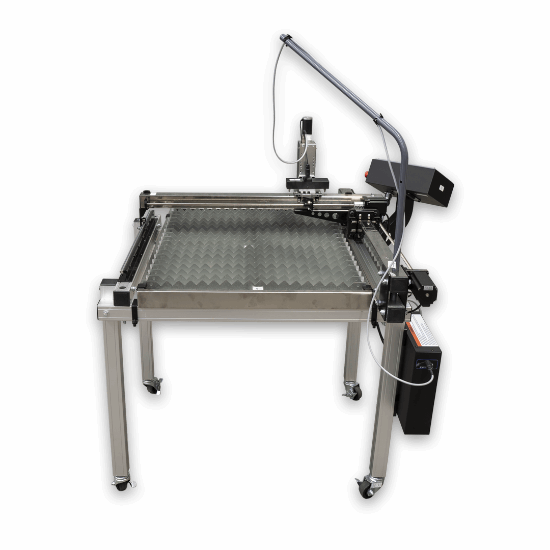

Strata WS66 Workshop Series CNC Plasma Cutting Table

Strata WS66 Workshop Series CNC Plasma Cutting Table

The Strata WS66 Workshop Series CNC Cutting Table is a compact CNC plasma cutting system designed for fabrication workshops, maintenance teams and manufacturers who need accurate, repeatable cutting without sacrificing valuable floor space. With a 610 × 610mm cutting area, it is ideal for producing brackets, gussets, signage, repair parts and other small to medium components with consistent precision.

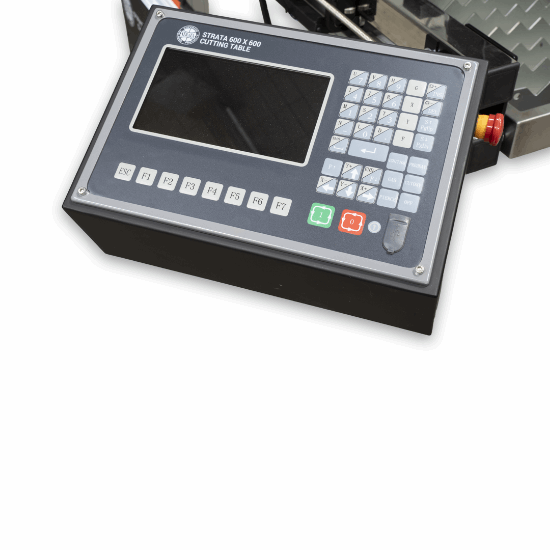

Designed for ease of use, the WS66 features a stand-alone CNC controller with USB input, eliminating the need for a dedicated computer during operation. Simply load your cut file via USB and start cutting. Automatic Torch Height Control (THC) continuously adjusts torch height throughout the cut, helping maintain cut quality across varying material thicknesses while reducing consumable wear.

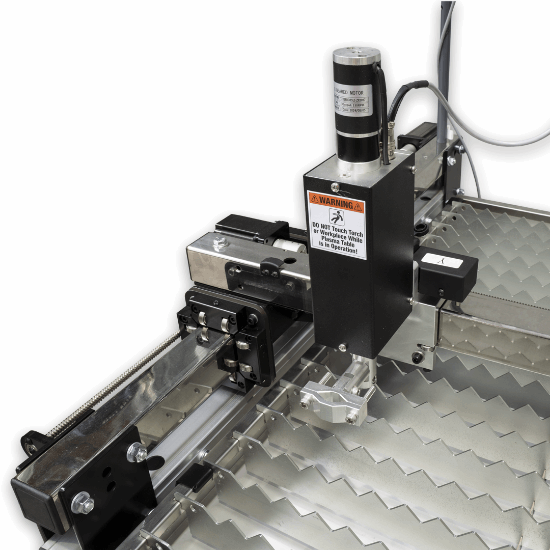

An integrated water table helps minimise heat distortion, sparks and fumes during cutting, while the lead screw drive system with stepper motors delivers smooth, accurate movement for detailed profiles and repeatable results.

Mounted on locking castors, the table can be easily repositioned within the workshop or moved into storage when required.

Whether you're producing one-off components or small production runs, the WS66 provides an efficient introduction to CNC plasma cutting.

Why Choose the WS66?

The WS66 is the ideal entry point into CNC plasma cutting for businesses that need professional cutting performance without the footprint of a larger production table. Compact, accurate and easy to operate, it's perfectly suited to prototype work, repair jobs, light fabrication and small batch production.

Features:

Compact 610 × 610mm CNC cutting area

Automatic Torch Height Control (THC) for consistent cut quality

Stand-alone CNC controller with USB input

Integrated water table helps reduce heat, sparks and fumes

Lead screw drive system with minimal backlash for accurate positioning

Stepper motor drive system for smooth, repeatable cutting

Includes FLcam software for creating and managing cutting files

What's Included:

WS66 CNC Cutting Table (Flat Pack)

FLCam Software

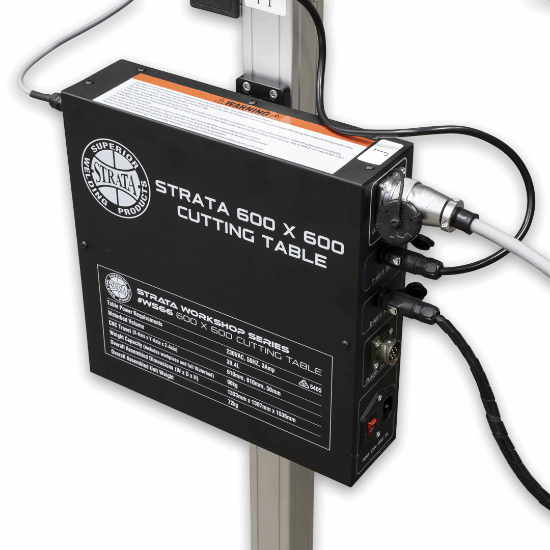

CNC Cut Controller

Stepper motor drive system

Torch Mounting hardware

Integrated waterbed

Assembly hardware

Important: The WS66 is supplied as a CNC cutting table only. A compatible CNC ready plasma cutter, machine torch and compressed air supply are required for operation and are sold separately.

Ideal Applications:

General fabrication

Engineering workshops

Maintenance and repair facilities

Small batch production

Custom metal fabrication

Automotive and motorsport fabrication

Educational and training workshops

Model: WS66

Specifications:

The Strata WS66 Workshop Series CNC Plasma Cutting Table delivers an affordable, space-efficient CNC cutting solution for workshops looking to improve productivity, accuracy and repeatability. With automatic torch height control, an integrated waterbed and stand alone CNC operation, it's a practical choice for businesses ready to take the next step into CNC plasma cutting.
