Strata WS1212 Workshop Series Plasma Cutting Table

Strata WS1212 Workshop Series Plasma Cutting Table

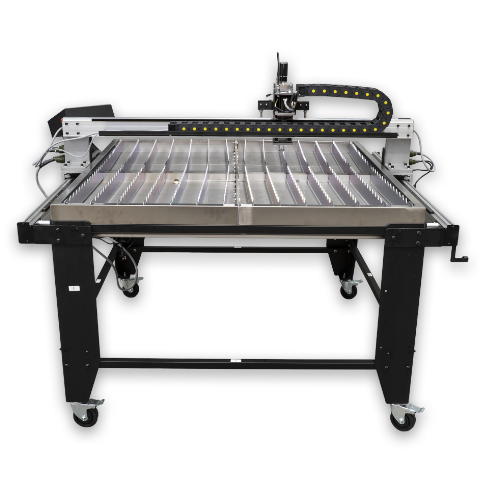

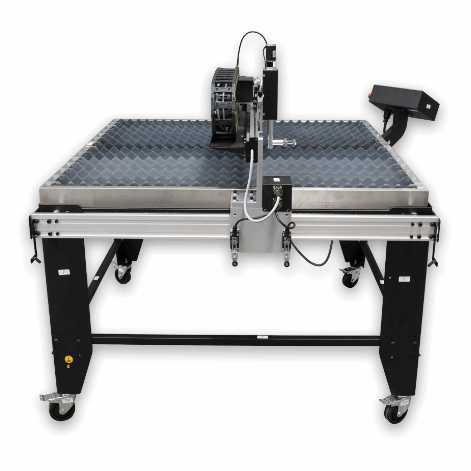

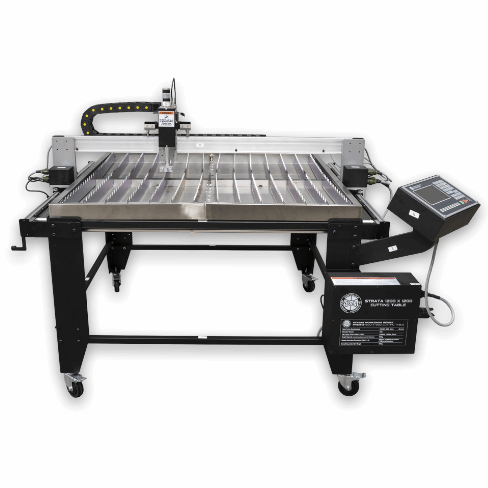

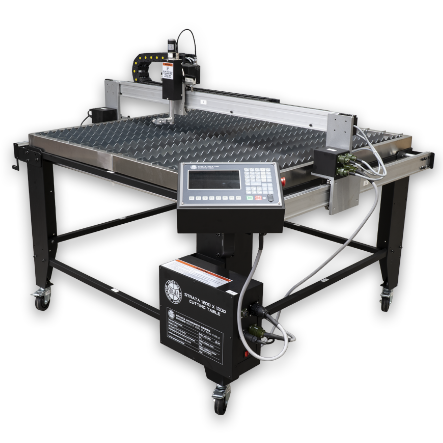

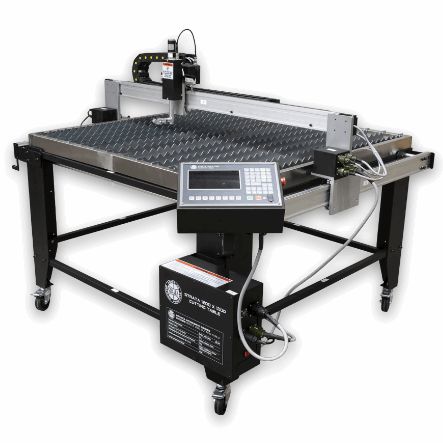

The Strata WS1212 Workshop Series CNC Plasma Cutting Table is a large-format CNC cutting system designed for fabrication workshops, maintenance teams and light industrial production.

With capacity for sheets up to 1220 × 1220mm, it allows larger components to be cut without first resizing the material, reducing handling and preparation time.

A precision rack and pinion drive system provides smooth movement across the cutting area, while the stepper motor system supports accurate and repeatable positioning.

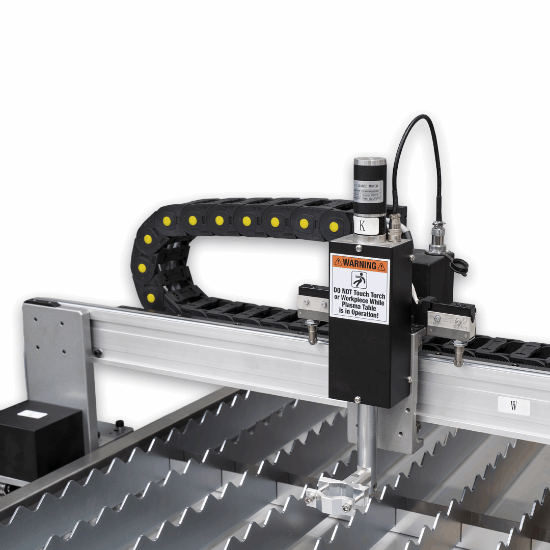

Automatic Torch Height Control continuously adjusts the torch during operation to help maintain consistent cut quality across uneven surfaces and varying material thicknesses.

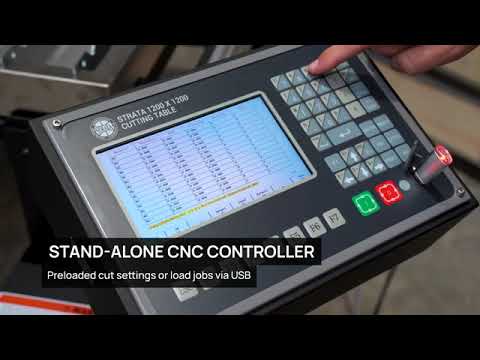

The stand-alone CNC controller allows cutting files to be loaded directly by USB without requiring a connected computer.

An integrated 125L waterbed helps control sparks and fumes while reducing heat distortion and supporting material stability during cutting.

The heavy-duty steel frame is fitted with locking castors for stable operation and easier positioning within the workshop.

Why Choose The WS1212?

The WS1212 is suited to workshops that require greater cutting capacity than the compact WS66. Its larger working area is ideal for full sheet processing, larger fabricated components and repeat production work while retaining stand alone operation and a workshop friendly footprint.

Features:

Handles sheets up to 1220mm × 1220mm

Rack and pinion drive system for smooth and accurate travel

Automatic Torch Height Control (THC) for precise, consistent cutting

Stand-alone CNC controller for simple programming and operation

Stepper motor drive system

Integrated 125 litre waterbed

Produces clean, repeatable cuts with minimal operator intervention

Heavy-duty steel frame with locking castors

What's Included:

WS1212 CNC Cutting Table (Flat Pack)

FLCam Software

CNC controller with Torch Height Control

Stepper motor drive system

Torch mounting hardware

Integrated waterbed

Assembly hardware

Important Information

The WS1212 is supplied as a CNC cutting table only. A compatible CNC-ready plasma cutter, machine torch and compressed air supply are required for operation and are sold separately.

Ideal Applications:

Fabrication workshops

Sheet metal processing

Manufacturing and production

Larger fabricated components

Automotive and motorsport fabrication

Engineering workshops

Model: WS1212

Specifications:

The Strata WS1212 provides a practical step up in capacity for workshops that need to cut larger sheets and components accurately. With automatic torch height control, stand-alone CNC operation and an integrated waterbed, it offers a complete cutting table platform ready to pair with a suitable plasma cutting system.

Click Here For Manual

Click here for Brochure
