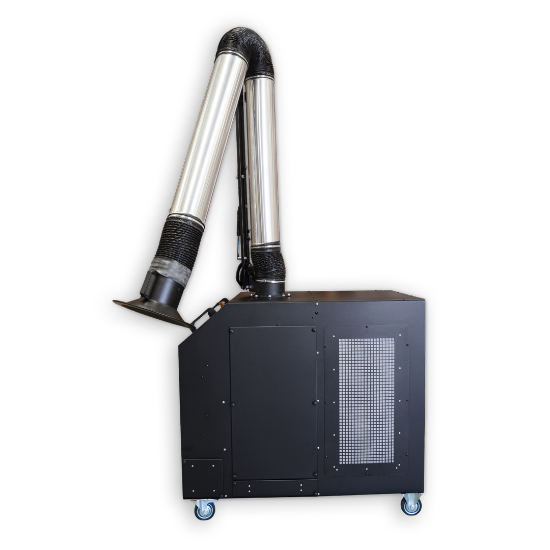

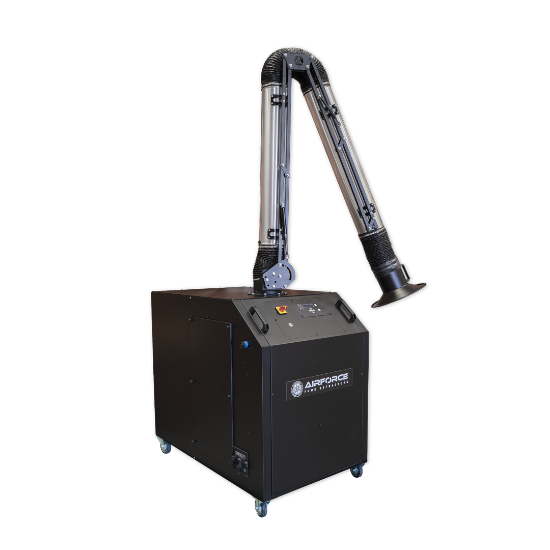

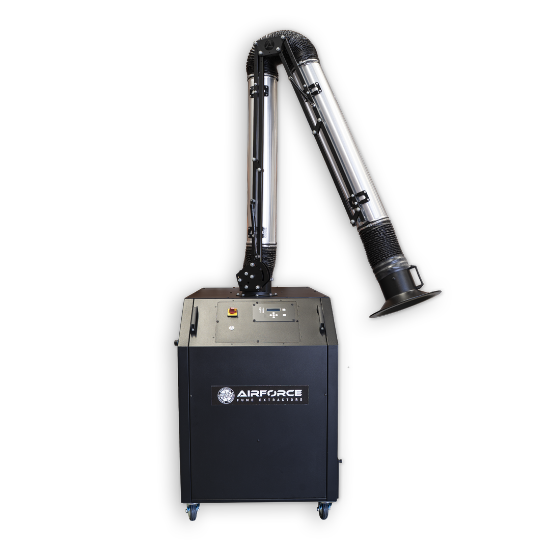

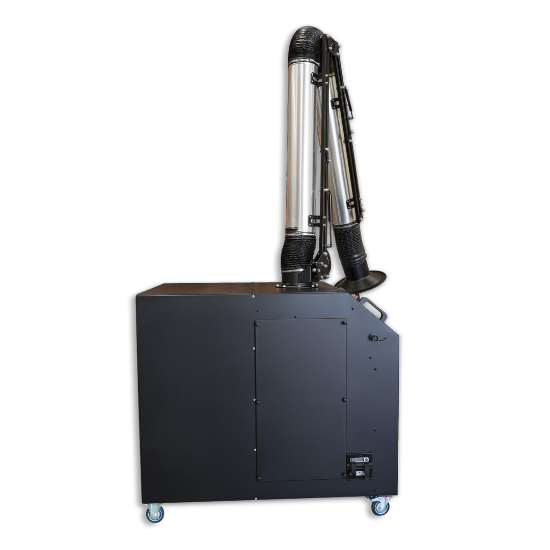

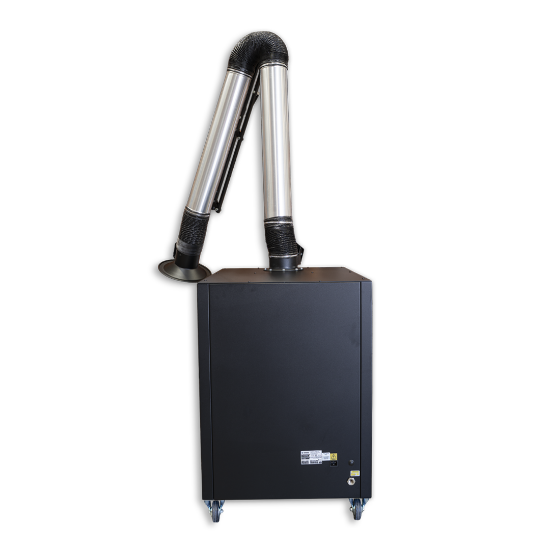

Strata Airforce FE320 Heavy Duty Self Cleaning Mobile Fume Extractor

$13,750.00
Tax included Shipping calculated at checkout.

Strata Airforce FE320ARM HD Self-Cleaning Mobile Fume Extractor

The Strata Airforce FE320 HD is a heavy duty mobile fume extraction system designed for welding, grinding and fabrication environments. Suitable for MIG, MMA, TIG, plasma cutting and grinding applications, it delivers powerful extraction performance with BIA "M" certified filtration efficiency greater than 99% to effectively capture airborne fumes and dust.

Featuring a large 12.6m² cartridge filter with Sintexx Plus nanofibre filter media, the FE320 HD combines high filtration performance with extended filter life. The automatic compressed air self cleaning system maintains filter efficiency during operation, while the integrated pre chamber separates sparks and heavier dust particles before they reach the main filter.

A digital control panel provides filter status monitoring, alarm log functions and an hour meter, allowing operators to easily monitor system performance.

The 4m articulated Ø160mm extraction arm offers extended reach and easy positioning, allowing operators to capture fumes directly at the source with greater flexibility.

Designed for workshops requiring reliable extraction performance and reduced maintenance, the FE320 HD is an ideal solution for demanding industrial applications.

Features:

M Class Certified filtration efficiency greater than 99%.

Automatic compressed air filter self cleaning system

Digital control panel with filter monitoring.

Alarm and hour meter.

Pre chamber spark and heavy dust separation system.

Sintexx Plus nanofiber filter media

Suitable for MIG, MMA, TIG, plasma cutting and grinding.

Model: FE320ARM unit with 4m multi directional articulated arm with Ø160mm rigid hood with damper.

Made in Italy

Specifications:

Motor Power: 1.5kW - 230V
Filtration Efficiency: BIA "M" >99%
Articulated Arm:  4m
Filter Area: 12.6m² Cartridge
Noise: 75dBA
Fan Capacity:  2520m³/h
Extraction at Hood: 1400m³/h (single arm)
Filter Media: Sintexx Plus - High Efficiency Nanofiber
Dimensions:  740 x 1180 x 1110mm (excl Arm)



Download Strata FE320ARM User Manual Here

Download Strata FE320ARM Brochure here
