Strata  |  SKU: 6479-N

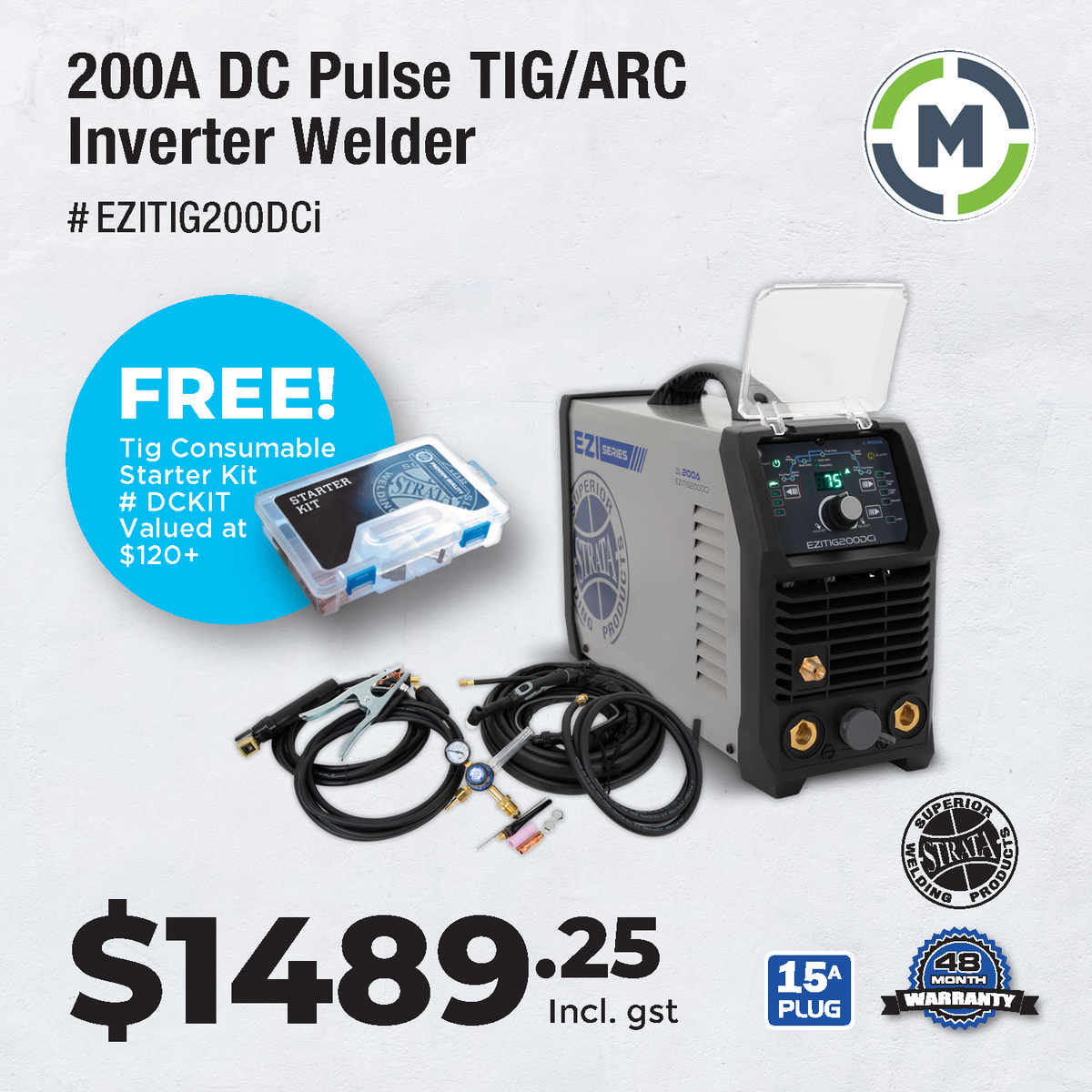

Strata 200A DC Pulse TIG / MMA Inverter Welder - EziTig200DCi

$1,374.25
Tax included Shipping calculated at checkout.

200A DC Pulse TIG / ARC Inverter Welder

The Strata EziTig200DCi, at only 7kg is a powerful highly portable, easy to use machine featuring 200A max output and advanced IGBT Inverter Technology for stable, reliable performance.

Equipped with a dual mode starting system and options for both wired and wireless foot pedal controls, it’s designed for both delicate and robust welding tasks.

Ideal for professional welders who require unmatched control and efficiency on any job site.

Features:

Max Output (Tig/Arc) - 200A

Max Electrode Size - 4.0mm

Input Power Supply - 15A 230V

Digital microprocessor control system for superior and dynamic arc characteristics.

Cold Arc & Spot-Welding Modes - Designed for welding very thin material without filler rod and heat distortion.

Lift TIG and HF start modes gives versatility when welding around sensitive electronic equipment.

IGBT inverter technology for smooth & stable welding output and increased reliability.

Industrial IP21S casing with front panel protection resists damage, moisture and corrosion.

Smart Cooling Fan Syatem - Reduces noise and intake of environmental contaminants into machine.

Lightweight & compact design, ideal for portable applications.

Extreme stress tested in production up to 440V, ensuring rugged reliability.

MMA Adjustable Arc Force, Hot Start & Automatic Anti Stick Control - Greater control and ease of use for MMA welding.

Electronic HF TIG arc ignition system, contamination free and easy arc starting with low EMF interference.

    2T/4T Trigger control modes.

    Durable and reliable with high quality & over specified electronic components.

    Intelligent protection system with temperature, voltage and current sensors for increased reliability and safety.

    Designed to work with generator power supply with protection from power surges -10KVA Minimum.

    Quick connect inlet gas fitting - Tool-less easy connection of gas supply to machine.

    Extreme stress tested to 440V with IP21S protection, the EziTig200DCi is built to last in the harshest NZ work environments.

    Accessories Include:

    3m earth lead with heavy duty earth clamp.

    4m MMA lead with heavy duty twist lock electrode holder.

    Strata Professional PRO26 12ft TIG 17 series torch with, flexi head and  composite machine connection.

    2 stage flowmeter, argon gas regulator.

    4m gas hose, gas inlet quick connector and hose clamps.

    Optional Accessories:

    Dual Mode Remote Control Option - Digital up / down button or potentiometer thumb wheel torch remote control options through a single connection plug

    Wired & Wireless Foot Pedal Control Option.

    Model: EziTig200DCi

    Specifications:

    Input Power Supply: 230V AC 15A 50/60Hz
    Input Power Tolerance: ±10%
    Maximum Input Current: 43A
    Generator Capacity: 10KVA
    MMA Current Output: 5A - 200A
    MMA O/C Voltage: 89V
    MMA/TIG Duty Cycle:

    200A @ 10%

    155A @ 60%

    120A @ 100%
    TIG Current Output: 5 - 200A
    TIG Duty Cycle:

    200 @ 10%

    155A @ 60%

    120A @ 100%
    TIG Upslope / Down Slope Adjustment: 0 - 10S
    TIG Pulse Frequency: 0.5 - 200Hz
    TIG Gas Post Flow / Pre Flow Adjustment 0-2 / 0-10S
    TIG Pulse Width Range: 5 - 95%
    Insulation Class: IP21S
    Power Efficiency: 85%
    Power Factor: 0.75
    Standards: AS/IEC60974-1:2012
    MMA Rod Size: 1.6 - 4.0mm
    Dimensions: 410 x 146 x 278mm
    Weight: 7kg



    Click Here For More Information

    Click Here For User Manual
