Strata  |  SKU: 6552-5000

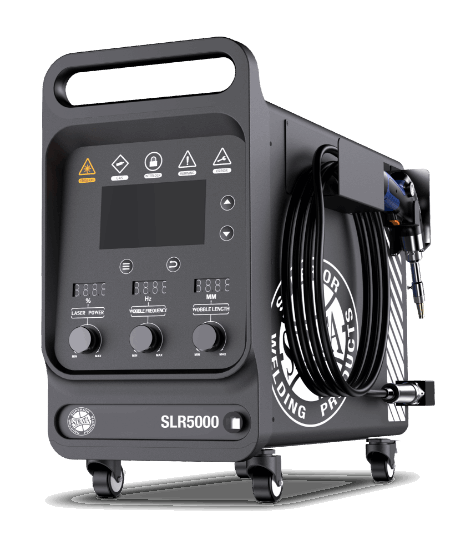

Strata SLR5000 Pro Series 2500W Handheld Laser Welder

$27,450.00
Tax included Shipping calculated at checkout.

Strata Laser Welder - SLR5000 Pro Series 2500W - Faster, Stronger And Cleaner Welds

This incredible portable laser welder utilises cutting-edge "small core diameter" laser technology and incorporates a state-of-the-art dual-circuit refrigerant direct cooling system, seamlessly integrated into its structural design.

Using this advanced technology the Strata SLR3000 Pro Series Handheld Laser Welder boasts impressive performance, outstanding penetration capability, efficient energy usage and unparalleled convenience.

Suitable for welding a wide range of metal materials, such as aluminium, stainless steel, carbon steel, galvanized steel, nickel, brass and so many more. Laser welding a great option for joining dissimilar metals in sections.

Typical applications that have proven amazing cost savings, productivity and weld reliability gains are: sheet metal production, stainless steel tank production, aluminium fabrication, sculpture industry, ducting production, signage production, automated parts welding, trailer fabrication, medical equipment production and embossed sheets.

Features:

Produce aesthetically pleasing welds with exceptional penetration.

Capable of welding from 0.2mm up to 9.0mm in most metals.

Great option for joining dissimilar metals in sections.

Excellent performance with high speed and efficiency - 6 to 10 times faster than TIG welding on thinner materials!

Usually no need for secondary processing like weld cleaning, deburring, grinding or buffing.

Very low heat spreading beyond the weld bead area ensures very little discoloration and no warping.

Low gas usage - Argon gas flow requirements for shielding the weld from impurities can be reduced to significantly lower levels than traditional welding methods.

Super quiet operation, less than 50dB

Capable of continuous operation 24 hours a day, 7 days a week.

Designed to withstand high and low temperatures, fault-free from -20°C to 60°C.

Low welding fume emissions, saving the environment as well as helping to protect the operator from the effects of harmful fumes.

Super simple and intuitive setup for varying material thicknesses and welding positions.

Ultra-compact welding torch - up to 40% lighter, only 595 grams!

Ergonomic torch design protects against operator fatigue in long run production scenarios.

Eight separate built in safety checks, protecting both the operator and also guaranteeing the integrity of the weld.

App adjustment and control available for welding parameters and troubleshooting / setup tips.

Includes:

Handheld laser welder power source

5m Laser torch cable

10m Workpiece clamp lead

Wire feeder unit

Protection glass

Nozzles - 0.8-1.0mm, 1.2-1.6mm and a flat welding wire feed tip

Protective spectacles and welding gloves.

Specifications

Weight 45kg
Max input power (W) 5400
Welding Speed (cm/min) 20-160
Welding Wire Diameter (mm) 0.8/1/1.2/1.4/1.6
Working Temperature(C°)  -20 ~ 60
Output Mode Integrated amored cable + torch
Laser Power 2500
Voltage  230V/50HZ
Dimensions(mm) l/w/h 670x456x310
Torch Wobble Width 0-5mm
Working Humidity <90%
Insulation Class: IP23
Working Duration 100% Duty Cycle/ 24 Hr continuous welding


Download SLR5000 User Manual Here

Click Here For More Info On Laser Welders

24 Month Warranty
