Strata  |  SKU: 6471

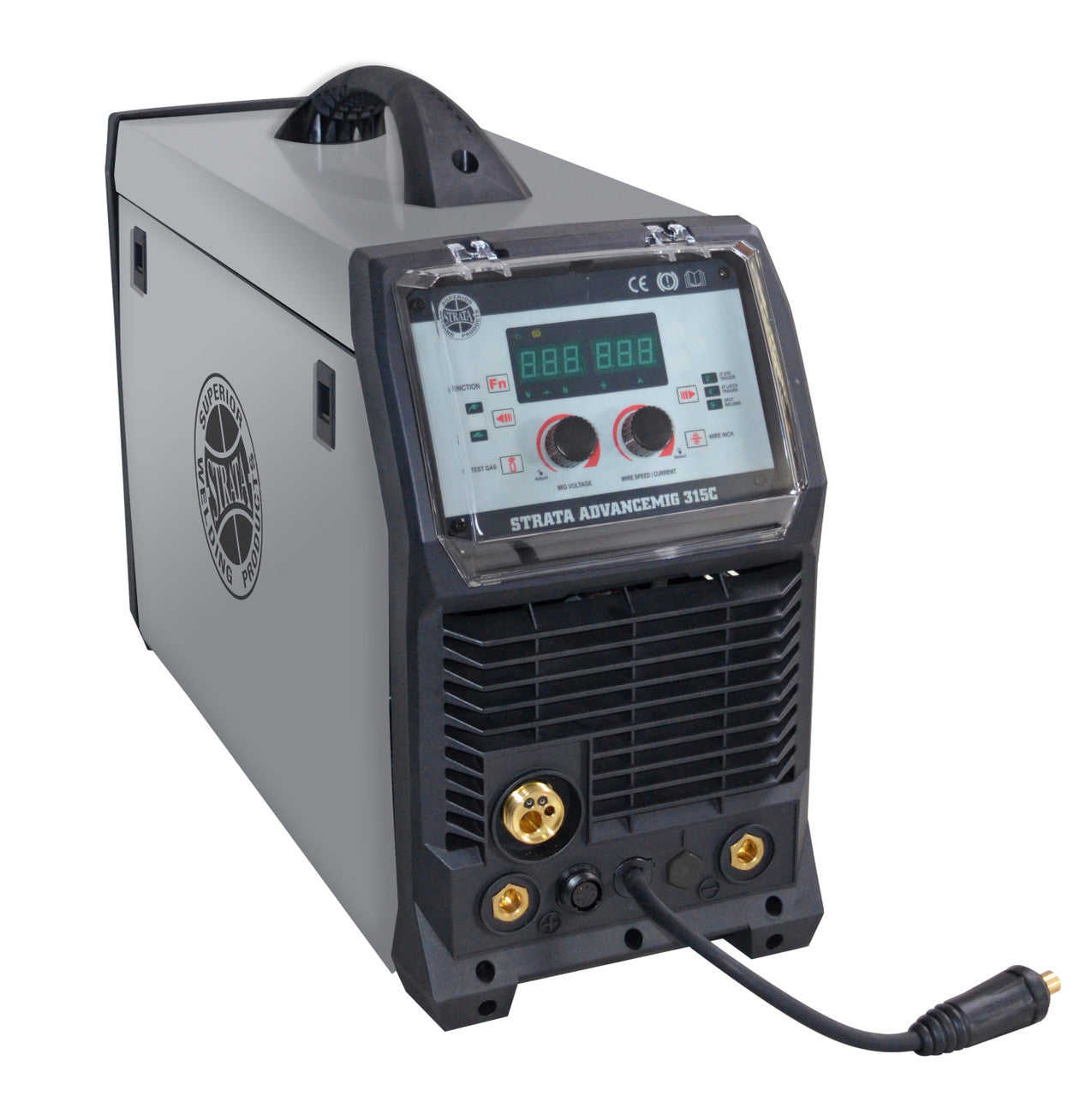

Strata 315A Compact Inverter MIG/MMA Multi Process 3 Phase Welder - ADVANCEMIG315C

$3,214.25
Tax included Shipping calculated at checkout.
Options

Strata ADVANCEMIG 315C, Multi Process Compact 3 Phase Welder

This 3-phase, multi-process welding machine offers the latest in IGBT inverter technology in a compact package making it ideal for a range of jobs.

Built tough with intelligent protection system to withstand the harshest of environments in the NZ workplace.

IGBT Module inverter technology for smooth & stable welding output, increased reliability and high duty cycle.

4 Roll geared metal wire feed unit provides a powerful and smooth wire feed.

Intelligent digital wire feeder with all MIG controls and display on the wire feeder control panel.

Digital microprocessor control system with superior & dynamic arc characteristics.

Optional integrated heavy duty industrial trolley available with storage compartment or integrated water cooler.

Remote control spool gun connection gives effective results welding with soft wires such as aluminum. Suitable for MIG brazing with bronze wires.

Lightweight and compact design - ideal for portable applications.

MIG waveform (inductance) gives good control of the arc for smooth welding results.

Industrial IP23 casing with front panel protection, resists damage, moisture and corrosion.

Great control MIG welding with adjustable pre flow, post flow, burn back and soft start settings.

Extreme stress tested in production up to 550V, ensuring rugged reliability.

2T/4T trigger operation with crater control settings.

Dual digital display meters for accurate pre-setting and feedback of welding parameters and output.

Intelligent protection system with temperature, voltage and current sensors for increased reliability & safety.

Designed to work with generator power supply with protection from power surges. • Reversible polarity MIG welding operation - suitable for gas and gasless welding.

Quick connect inlet gas fitting.

Accessories include:

3m earth lead with heavy duty earth clamp.

4m MMA lead with heavy duty twist lock electrode holder.

Professional MIG torch.

Argon gas regulator

CO2 Cylinder adaptor

4m Gas Hose, Gas Inlet Quick Connector, Gas Hose Clamp

Wire Drive Roller ‘v’ groove (0.6 - 0.8mm & 0.9 - 1.0mm)

Wire Drive Roller flux cored (0.8 - 0.9mm).

Model: ADVANCEMIG315C

Specifications:

Input Power Supply: 400V AC 32A 3 PHASE 50/60Hz
Input Power Tolerance: ±20%
Maximum Input Current: 20A
Generator Capacity: 17KVA
MIG Drive Rollers Available:

V Groove 0.6/0.8/0.9/1.0/1.2mm

Knurled: 0.8/0.9/1.0/1.2mm

U Groove: 0.8/1.0/1.2mm
Mig Wire Spool Size: D200mm/D300mm 5kg/15kg
MMA O/C Voltage: 70V
MMA/TIG Duty Cycle: 315A@35% 195A@100%
Standards: EN60974-1:2012
MMA Rod Size: 2.4 - 6.0mm
Power Efficiency: 85%
Power Factor: 0.7
Mig Output Current: 15A - 315A
MIG Duty Cycle:: 315A @40%   200A @100%
MMA Current Output: 10A - 315A
Insulation Class: IP23
Wire Feeding Speed: 2.4 - 18m/min
Mig Output Voltage: 10 - 30v
Insulation Class: IP23
Dimensions: 680 x 240 x 450mm
Weight: 26kgs



Click Here For More Information

Click Here For User Manual
