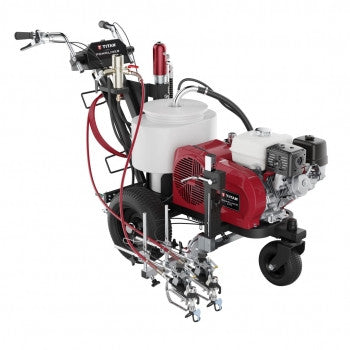

Titan PowrLiner 6955 - Heavy Duty Industrial Line Marker

Titan PowrLiner 6955 - Industrial Line Marker

Please Contact Us prior to purchasing this product to ensure we can provide you with current availability and/or offer alternative options available for purchase.

Large scale jobs require precise lines, curves and circles without retouching - now the choice in line marking equipment could not be easier.

The PowrLiner 6955 has it all! It is the work horse machine of the industry, the ease of use and simple operation on major projects allows maximum performance with minimum downtime and maintenance.

Supplied complete with 2 guns the Titan 6955 is the step up in hydraulic stripers and is recommended for large scale, full-time duty on airports, roads, parking lots and athletic fields.

Will paint up to 210 lineal metres per minute.

Standout Features:

Electric start.

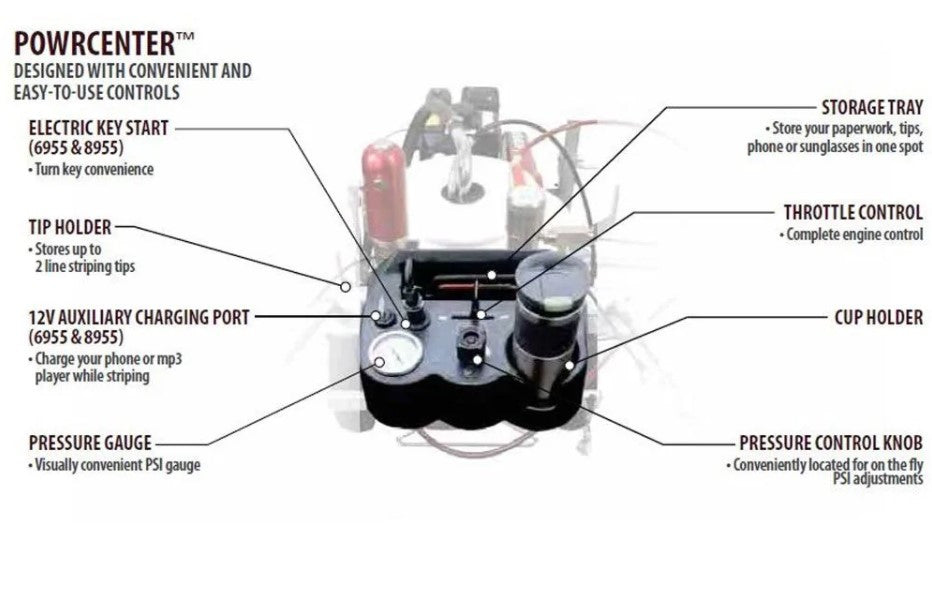

The PowrCenter features a handy pressure gauge, cup holder, storage tray, 12V charging plug for your phone and spray tip holder.

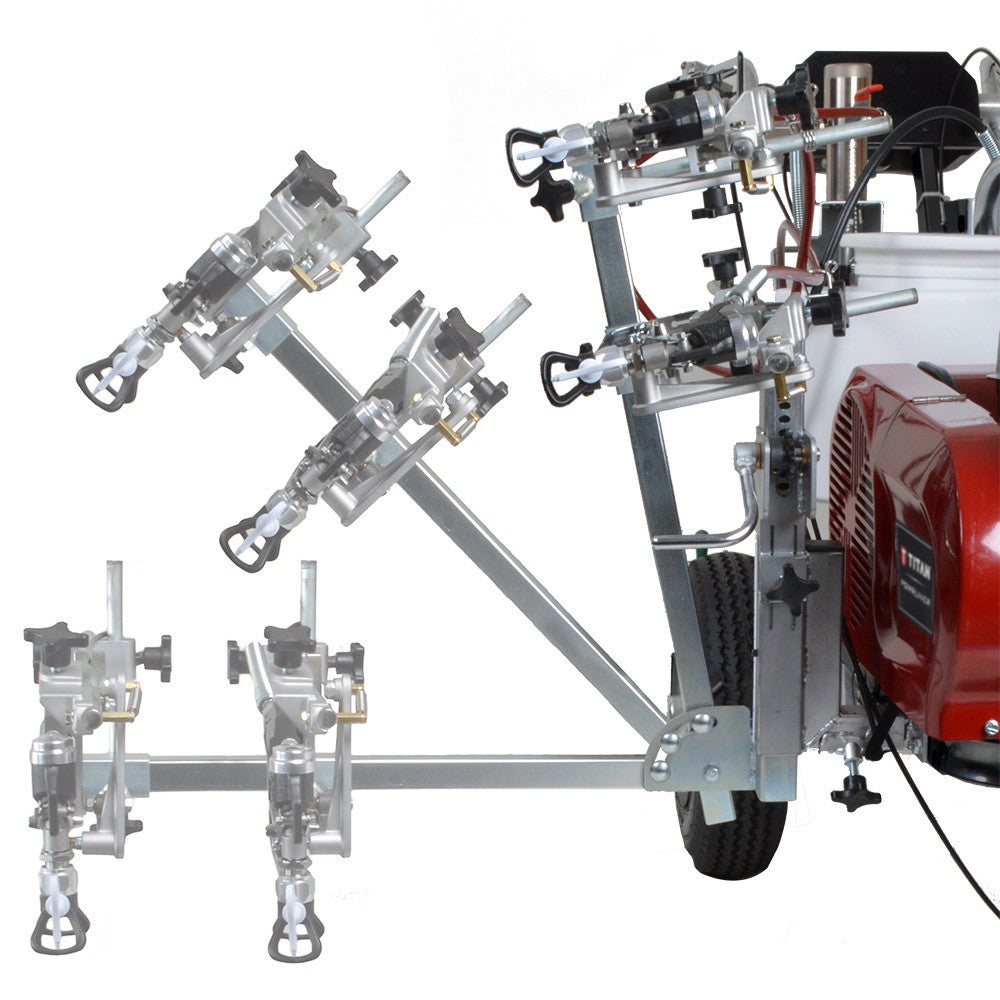

SmartArm - Can be positioned to spray on left or right, built to pivot and lift, making line adjustments and transportation quick and easy.

Second Gun Kit - S-3 gun, hose and tip kit for wider or dual lines.

Lock in front jockey wheel.

Features:

Precise pressure control from 400 to 3300 PSI, for spraying light-bodied coatings all the way up to low-VOC striping paints.

Works with almost all advanced, low-VOC (volatile organic compounds) waterborne traffic paints.

Heavy-Duty epoxy-finished frame resists harsh solvents and corrosion.

Quick Release Gun Holder for Stencil Work.

45-Litre Paint Hopper.

Pneumatic tires for shock absorption and highway rated bearings.

Convenient hose rack keeps hose conveniently stored on the rear of the striper.

Easy, tool-free convertibility from gas to electric power for projects where gas engines are not permitted.

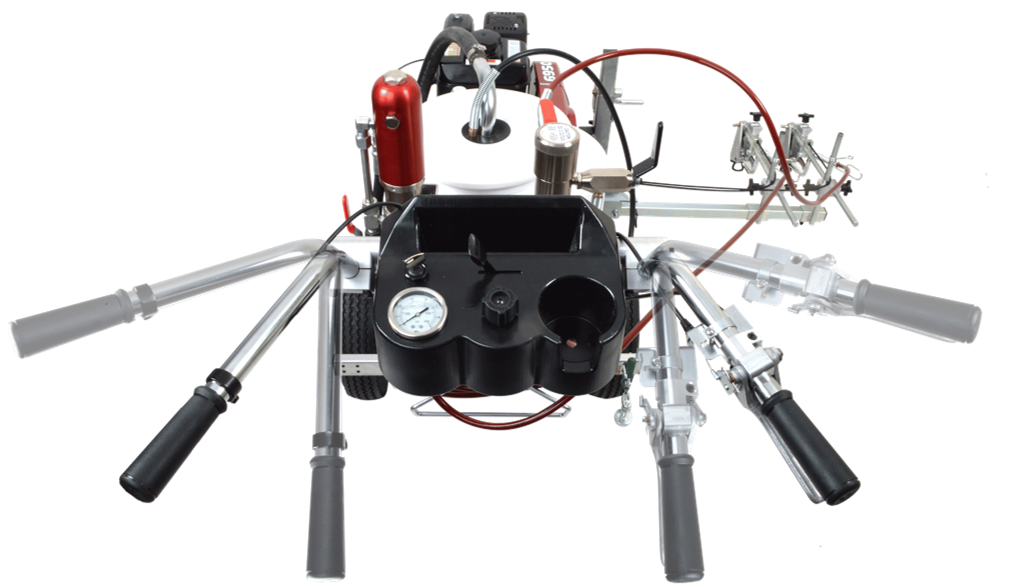

DeadLock Handlebars

Easily adjust handlebars on three planes; in and out, up and down and pivot forward or back

Speeflo HydraDrive

Reliable, smooth, slow-stroking hydraulic drive greatly extends the operational life of the sprayer.

External-hydraulic fluid porting with NEW, upgraded fittings allows for quick troubleshooting and simplified maintenance.

SAE o-ring fitting and precision rod alignment ensure maximum pump life.

Severe Service 900 Pump

Cylinder and piston rod are tempered with a proprietary heat-treating process that increases pump life up to 150% longer than competitive pumps.

Self-adjusting packings prevent over-tightening and help prevent premature wear.

Foot valve removes easily for faster cleaning and easy maintenance.

Reversible inlet and outlet seats have twice the lifespan of ordinary outlet seats and extra large ball valves ensure efficient pump operation and longer unit life.

Heavy-duty prime/spray valve ensures consistent, increased flow and faster pump priming

Specifications:

Power: Honda GX160

Flow Rate: 7.95 l/min

Max Tip Size 1 Gun: 0.050"

Max Tip Size 2 Gun: 0.033"

Max Pressure: 3300 psi

Max Speed: 210m / per minute

Line Width: 5 - 60cm

Max Hose Length: 90m

The Titan PowrLiner is supplied with 2 guns on 3 wheel trolley with lock in front jockey wheel

45 litre Hopper

Second gun kit (S-3 gun, hose and tip kit for wider or dual lines)

Flexible Suction System

419 TR1 Line Striping Tip And Tip Guard

15 metre Airless Hose with Hose Rack and Quick Release Gun Holder for Stencil Work.

Wear Guard Warranty - The Best & Longest Warranty In The Industry!

Download Titan PowerLiner Brochure Here

Download User Manual Here
