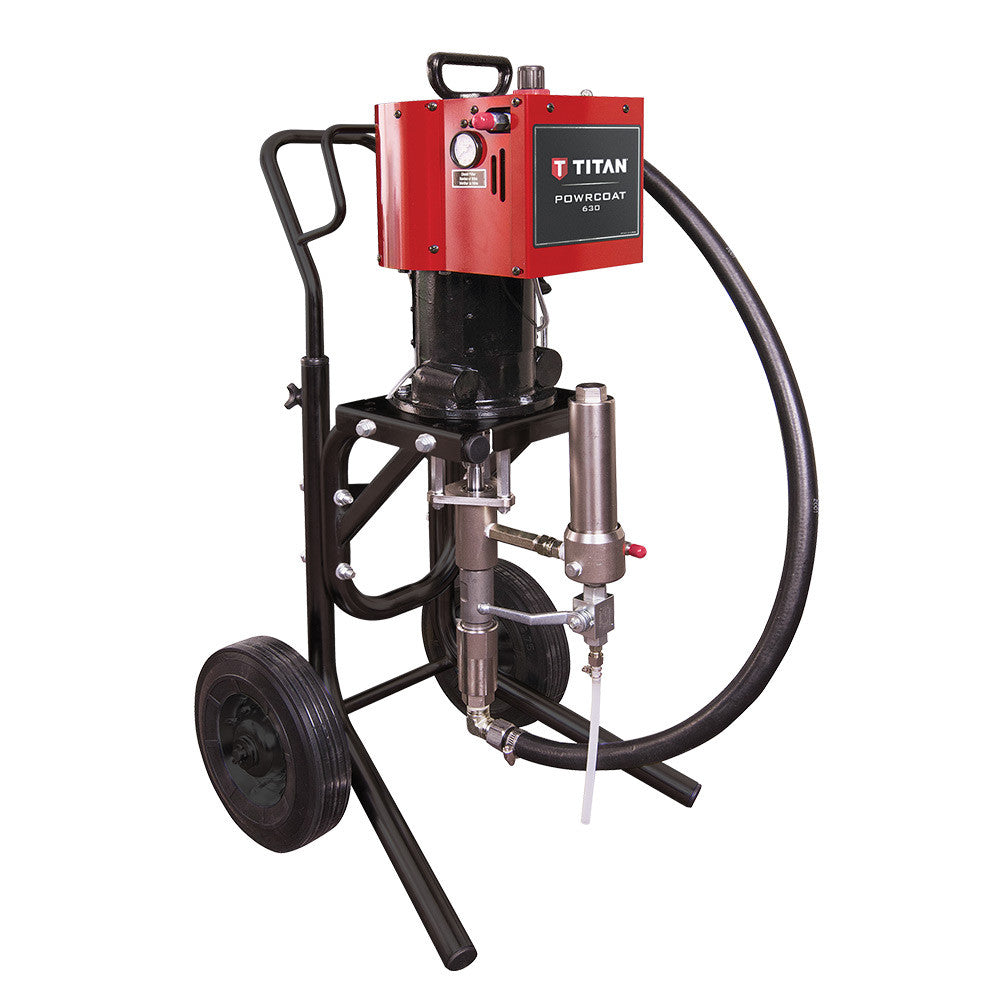

Titan PowrCoat 630 - 30:1 High Pressure Pneumatic Sprayer

Titan PowrCoat 630 - The Airless Pneumatic Sprayer that are so tough they are virtually indestructible.

Please Contact Us prior to purchasing this product to ensure we can provide you with current availability and/or offer alternative options available for purchase.

We have PowrCoat models for virtually any application, including architectural, industrial maintenance, corrosion control, cold applied roofing, waterproofing and marine protective coatings - Each pump is designed for easy application of today’s low-VOC, high solids and abrasive coatings.

The durability, reliability, and ease of operation that you need are built in to each unit. Severe Service means twice the life with half the maintenance.

PowrCoat Sprayers are high pressure airless sprayers are used throughout the world, providing their owners with dependable, efficient operation.

Good luck trying to wear out any of the PowrCoat sprayers - Not only is this series of workhorses endlessly reliable, but it also delivers mobility and a quicker spray with minimal maintenance.

All Titan PowrCoat Pumps are designed for easy application of today’s low-VOC, high solids, and abrasive coatings.

PowrCoat 630 Specifications:

Ratio: 30 : 1

Max Operating Pressure: 3480psi

Max Air Input Pressure: 116psi

Max Output: 5.5 l/pm

Approximate Air Requirement: 25.0 SCFM (Per 4lt of Output @ 100 PSI (6.9 bar) Air Pressure)

Fluid Output Per Cycle: 61cc (61ml)

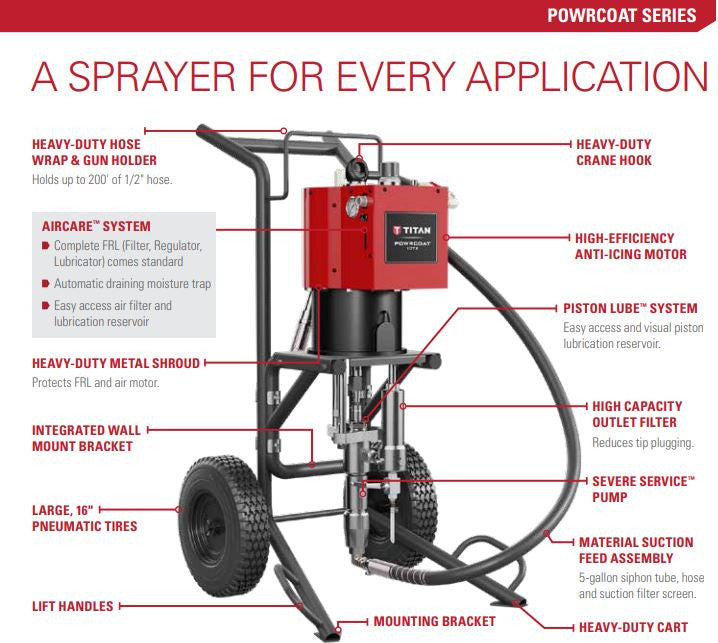

Premium Is Standard

AirCare system eliminates motor icing.

Complete FRL (Filter, Regulator, Lubricator) standard with every PowrCoat.

PowrCoat piston engineered for unmatched chemical and solvent resistance while also creating a smoother stroke for less friction and wear.

Automatic draining moisture trap.

Severe Service Fluid Section Features self-adjusting packings.

Severe Service Piston Rod and Cylinder - Titan exclusive hard-chrome plating is the hardest and slickest wear surface in the industry.

High Capacity Outlet Filter Features 3/8” and 1/4” outlets and easy-on / easy-off filter access.

Air Filter, Moisture Separator, Regulator and Lubricator: Included on all PowrCoat models

Heavy-Duty Frame Features:

Large 16” pneumatic tires.

Convenient lift handles.

Heavy duty crane hook.

High capacity hose rack that holds up to 60m of 1/2” hose.

Can be converted to a wall mount (bracket available separately)

Supplied With: I15m Airless Hose, RX-Pro Airless Gun, 517 TR1 Tip and Tip Base.

Download PowerCoat 630 User Manual Here

Download The Full Titan Air Powered Range Brochure Here
