Wagner PlastCoat PC1025 Pro - Spray Fire Protection Coatings, Plaster And Roof Coatings,

Wagner PlastCoat PC1025 Pro - Meeting The Needs Of The Construction, Concrete Rendering, Painting, Plastering And Roofing Industries.

Please Contact Us prior to purchasing this product to ensure we can provide you with current availability and/or offer alternative options available for purchase.

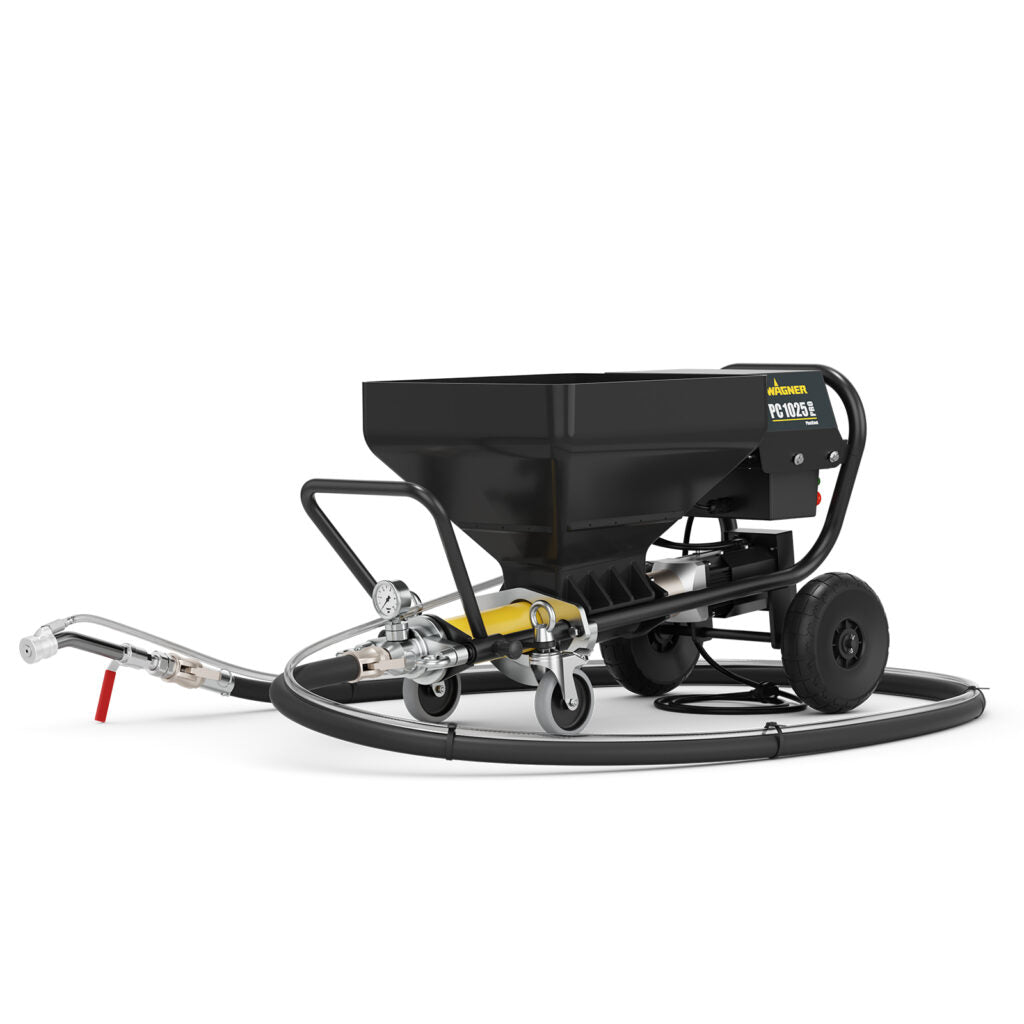

The PlastCoat PC 1025 Pro was designed to meet the needs of the construction, concrete rendering, painting, plastering and roofing industries. This versatile equipment is capable of spraying a wide range of thick materials, including fire protection coatings, plaster and roof coatings, as well as concrete render with a grain size of up to 6mm.

Wagner’s screw pump technology is noteworthy for its power and ability to handle highly viscous materials with heavy filling, coarse grain or even fibers. The Wagner pumps are user-friendly and infinitely variable, making them well-suited for beginners.

Mortar spraying equipment can be easily dismantled and reassembled, even at the construction site. All wetted parts are made of stainless steel, thereby ensuring that our PlastCoat units are long-lasting, robust and low-maintenance. The uncomplicated operation of the equipment avoids potential sources of errors and damage.

Using a screw pump is particularly advantageous when working with heavy materials such as plaster or filler. It allows for high working speeds while achieving a high-quality surface result – with minimal physical effort due to machine processing. This results in faster plastering, filling, coating or reinforcing of surfaces, resulting in significant time and material savings. The extent of the time and material savings is proportional to the surface area involved.

Benefits of PC1025 Pro include:

No maintenance brushless motor 240V - 15 Amp.

Protection against voltage fluctuations through control box.

Polypropylene hopper with capacity of up to 50 litres.

Stator can be easily removed without additional tools.

Automatic pressure relief (4 sec) to ensure safety and prevent spitting of material after opening the spray lance. After closing the spray lance the machine runs in reverse mode for around 4 seconds.

Pneumatic control via power switch and dial function.

70° angle pneumatic lance with swivel joint (lightweight).

Variable delivery rate available through 4 Rotor & Stator options.

About PlastCoat Sprayers:

Screw driven machines for aggregate based products such as acrylic based renders, textures, waterproofing, grouting and fireproofing compounds.

The application of organic and mineral materials is really hard work. The material often has to be carried up in buckets over several floors, especially in multi-storey buildings. Dirt and mess on construction sites are inevitable. Wagner texture and render machines makes things much easier. The material is pumped from the ground to heights of up to 30 metres.

The PlastCoat units are suitable for a huge variety of applications, such as thermal insulation, textured plaster and paint, acrylic based renders, smoothing and structuring, waterproofing, concrete repair and much more, and will ensure a uniform coating quality.

When material is applied using PlastCoat units, it is fed from the hose to the spray lance via a spiral/screw pump. When compressed air is injected at the spray lance, the heavy material is atomised to ensure uniform application. Screw pumps use a displacement worm drive mechanism to deliver the material through the rotor and the stator. The equipment is exceptionally durable and low maintenance

Includes:

Highly Portable system with inbuilt Trolley

50 litre Hopper

10M of DN25 Mortar Hose (Incl air hose)

Spray lance (6mm texture tip)

Tool bag incl cleaning & service tools

Specifications:

Max Pressure: 580 psi

Max Delivery Rate: 10 l/min (can delivery up to 20l/min with differing rotor and stator options)

Max Delivery Radius: 40m

Max Delivery Height: 20m

Max Grain Size 6mm

Voltage: 240V/50 Hz (15 amp power requirement)

Motor Rating: 3HP / 2.2 KW

Requires min.12 cfm compressor. (not included)

Click Here For More Information

Click Here For User Manual

All Prices Include GST

Buying an airless spray unit is an investment and an expensive one at that, if you have any questions, doubts or just want some no pressure advice please get in touch. Contact Matt
