Optrel Helix Quattro - Slide Lens Auto Darkening Welding Helmet
Optrel Helix Quattro - Slide Lens Auto Darkening Welding Helmet - Helmet Only is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Optrel Helix Quattro slide-up welding helmet with panoramic field of view and the highest optical class.
The revolutionary Optrel HELIX is a welding/grinding helmet unlike any other, featuring a flip-up mechanism inside the helmet that defies industry norms. This innovative design reduces weight and the need for consumables. Its auto-darkening lens includes a nose cut-out, allowing for a closer glare shield and an unparalleled six times larger field of view. The Helix Quattro from Optrel is the ultimate welding helmet for even the most challenging work environments.
Panorama-XXL-field of view
The patented nose cutout brings the glare shield closer to your eyes. The result: a much larger field of vision and a clear separation between the mouth and eye area, which also prevents tarnishing of the protective lens.
Isofit® Headgear
The headgear with numerous adjustment functions. For your personal best wearing comfort.
ShadeTronic®
A light sensor permanently measures the intensity of the welding arc and continuously regulates the glare protection over the entire shading level range - Uninterrupted work at any welding light intensity.
Ideal For The Following Applications:
Electrode Welding (Stick Welding, SMAW)
MIG/MAG (GMAW)
GMAW High melting rate process
Flux Cored Wire Welding
TIG Welding (GTAW)
Plasma Arc Welding / Micro Plasma Arc Welding
Plasma Cutting
Gas Welding
Grind Mode
You Will See Better
In job preparation.
When welding.
During weld inspection.
When grinding.
When stitching.
Better visibility increases safety, convenience, and efficiency in the workplace.
Specifications:
Protection Levels: |
ShadeTronic Inactive: 3,0/4,0 |
Power Supply: |
Solar cells, Li polymer battery pack, chargeable via Micro-USB |
Battery Life | 300 to 500 charging cycles |
Sensors: | 5 Sensors |
Sensitivity
|
Continuously, new with “Super High” sensitivity |
Switching time
|
Light to dark: 0,090 ms at 23°C 0,070 ms at 55°C Dark to light: 0,1 s to 2,0 s (with FadeTronic) |
Field of vision |
2.3 to 6.3 times bigger than a 100 x 50 mm standard ADF |
Classification EN379 |
1/1/1/1 |
Shape stability |
Mask: up to 220 °C
Front cover lens: up to 137 °C |
Operating Temperature: |
-10°C to + 55°C |
Storage Temperature: |
-20°C to + 70°C |
Optional Respiratory Protection - PAPR

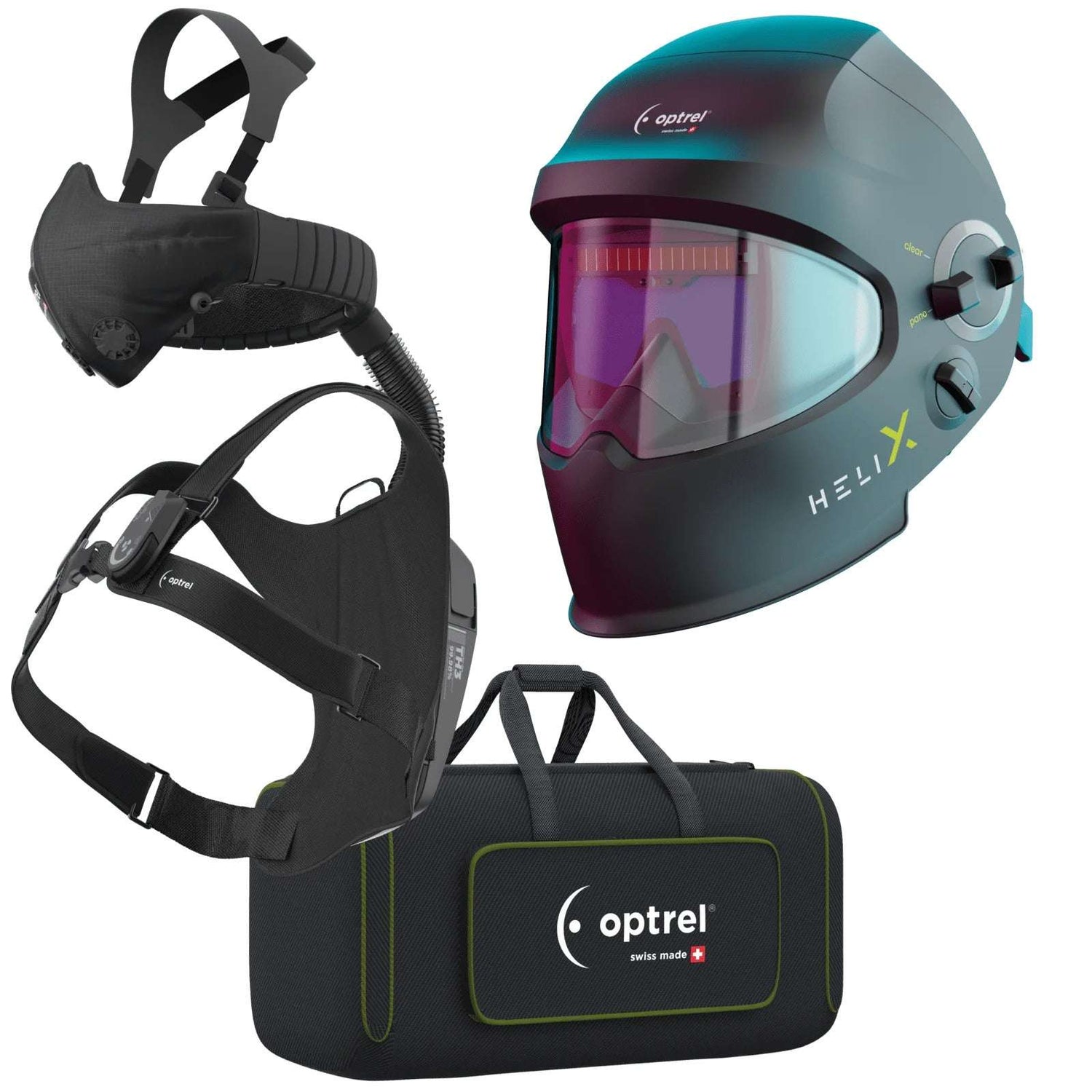

Complemented with the Optrel Swiss Air TH3 respiratory protection system, the helix becomes your optimal welding equipment. The system meets all requirements for eye and respiratory protection and leaves nothing to be desired in terms of comfort.
Click Here For More Information Optrel Helix Quattro
Click Here For Downloadable Optrel Swiss Air PAPR
