Graco Pro Contractor Ultra 795 XT - Not All Sprayers Are Created Equal

Graco Ultra 795 XT Pro Contractor - 3 Gun Capable Powerhouse

I like to compare a spray unit to towing a big boat, you can tow it with a small car or a big 4X4 that is designed for towing, both can tow the boat but only one will do it easily, reliably and continuously, do not get a unit that is to small, the Graco 795 XT is a premium unit designed for the professional contractor.

With the ability to run 3 guns and designed to spray between 350 and 750 Litres per week the Ultra 795 XT Series electric airless sprayers are built specifically for high volume use.

When it comes to getting the most work done in a day, its all about speed and high performance, the ProContractor Series help you get in, out and onto the next jobsite faster, saving you time and money.

The Ultra 795 XT Pro Contractor Series provides USA made reliability and maximum performance with a 2.3 hp Xtreme Torque motor, featuring Next Generation Rapid-Response Pressure Control and an Endurance Vortex MaxLife Pump. Plus additional features like the BlueLink Job & Sprayer Management System, ProConnect Pump Replacement System and QuikReel Hose Management System.

Xtreme Production & Reliability. XT ProContractor Series electric airless sprayers are built specifically for professional contractors looking to increase production on the industry's most silent spraying platform. Complete with numerous time saving features and the industry's longest life pumps, an XT ProContractor will keep you out of the shop and on the job.

How is Pro Contractor different from the Standard models?

1/ Upgraded pump to the Endurance Vortex MaxLife pump which lasts 6X longer due to its rotating rod technology.

2/ QuikReel integrated hose reel for onboard hose management - can deploy and rewing up to 90m of hose without twisting, kinking or coiling.

3/ SmartDisplay XT - Ready to connect to the Graco Contractor Powershot XT Spray Gun (available separately)

4/ Puncture Proof Tyres - Never have a flat again

Standout Features:

Contractor PC Spray Gun: the lightest, most comfortable gun ever built.

WatchDog Pump Protection System: Automatically shuts off pump to prevent pump damage if material supply is too low.

BlueLink Job And Sprayer Management App: Maximize uptime: Set maintenance schedules, alerts & jobsite notes.

Specifications:

Max Tip Size 1 Gun: 0.033

Max Tip Size 2 Guns: 0.025

Max Tip Size 3 Guns: 0.019

Max Delivery: 4.5 LPM

Min PSI: 50

Max PSI: 3300

Motor: 2.3 HP Xtreme Torque

Voltage: 240

Weight: 51kg

Graco Features:

Xtreme Torque Motor Technology

15X more torque than traditional motors.

8X more magnets provide unmatched power and performance.

90% lower running speeds extend motor life.

Up to 10X quieter.

Rapid Response Pressure Control

Instantly responds to deliver the best finish quality.

More performance across its full tip size range.

Industry's largest operating pressure range (50 – 3,300 psi).

Selectable Performance Modes

Two selectable spray modes offer unique performance levels to boost efficiency on every job.

Bring on the savings and achieve Xtreme Control with Low Pressure Mode (50 - 2,000 psi).

Use High Pressure Mode for Xtreme Performance (500 – 3,300 psi).

QuikAccess intake valve for fast cleaning or debris clearing.

SmartDisplay XT

Compatible with Contractor PowerShot XT Gun

Visible in even the toughest spraying conditions

TurboClean Cleaning System

Industry's fastest pump cleaning System

Delivers 3X faster cleaning with 1/2 the water

QuikReel Hose Management System

Easy Hose Management.

Deploy and rewind up to 90m of hose in seconds.

No twisting, kinking, and coiling.

Use only the hose you need — the rest stays on the reel.

BlueLink Job & Sprayer Management System

Streamline your business.

Track every sprayer: Exact location & hourly productivity.

Know job progress: On demand productivity facts and reporting from anywhere.

Maximize uptime: Set maintenance schedules, alerts, & jobsite notes.

Endurance Vortex MaxLife Piston Pump With ProConnect

Superior pump life.

Breakthrough Vortex rotating rod technology.

Lasts 6X longer between repacks with innovative MaxLife technology.

Oversized passages for high velocity flow to rotate piston for even wear.

Repack pump in minutes with new QuikPak cartridge repair system.

Fast and easy on-the-job Pump Replacement System (1-minute jobsite replacement in 3 simple steps).

Durable Filtration

Easy Out Filter provides easy maintenance and less clogging.

Crushproof Inlet Strainer stands up to harsh impacts to maintain even flow.

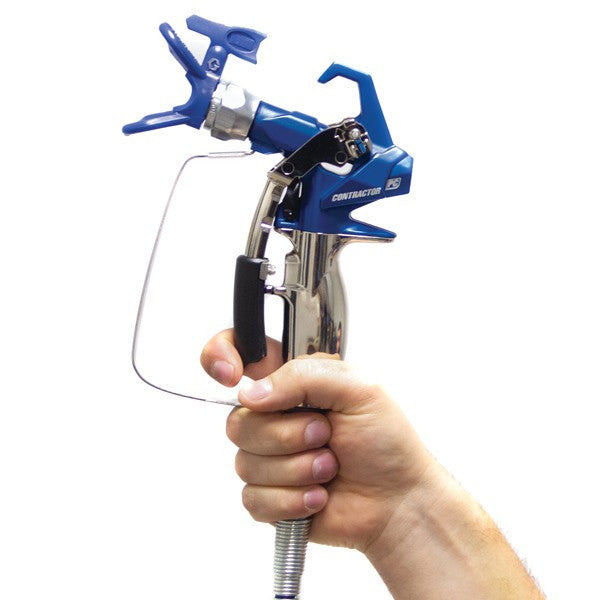

Contractor PC Spray Gun

Lightest weight gun in its class.

Up to 50% lighter trigger pull force.

E-Z Fit adjustable trigger length.

Complete no-tools gun rebuild in seconds with ProConnect cartridge.

Click here for more details on the Graco Contractor PC Gun

Standard Features:

Pressure Control - Easy adjustment of spray pressure.

The Graco Ultra 795 XT ProContractor is supplied ready to start spray painting with Contractor PC Spray Gun, 15m BlueMax II Airless Hose and RAC X LTX 517 Spray Tip.

Click here for the Graco 795 XT Electric Sprayer Manual

All Prices Include GST

Buying an airless spray unit is an investment and an expensive one at that, if you have any questions, doubts or just want some no pressure advice please get in touch. Contact Matt
