Strata  |  SKU: 6445-DDT

Strata Airforce Downdraft Welding Table Mobile Fume Extractor

$7,450.00
Tax included Shipping calculated at checkout.

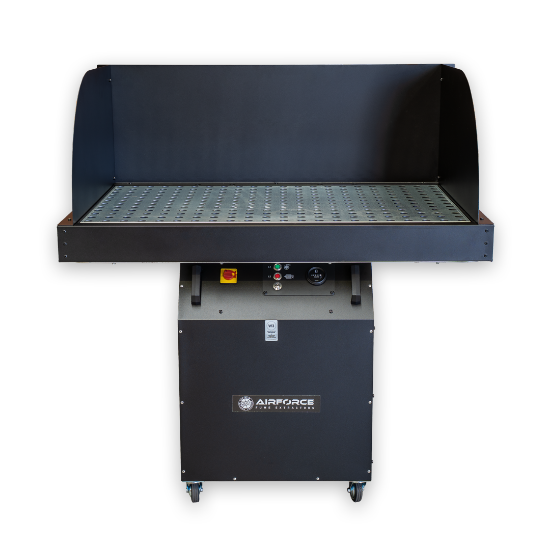

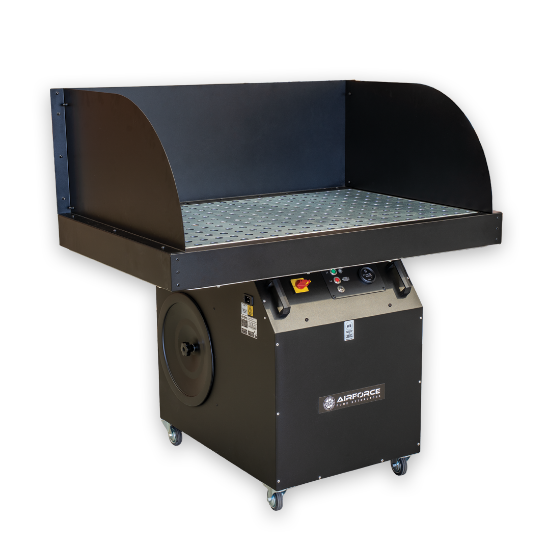

Strata Airforce FE210TABLE Downdraft Welding Table

The Strata Airforce FE210TABLE combines high efficiency welding fume extraction with an integrated downdraft welding table, providing effective capture of welding fumes, grinding dust and airborne particles directly at the work surface.

Designed for fabrication workshops and industrial environments, it helps create a cleaner and more controlled workspace while maximising available floor space.

Delivering W3 certified filtration efficiency greater than 99%, the FE210 effectively captures hazardous welding fumes before they spread through the workspace, making it suitable for stainless steel, alloy and mild steel welding applications.

The FE210 features a high efficiency Sintexx Plus nanofibre cartridge filter, integrated spark arrestor and dust collection drawer for effective capture of dry welding fumes and particulate.

A differential pressure filter monitor provides clear indication of filter condition while the cartridge cleaning system allows simple routine maintenance.

Powered by a 1.1kW single phase motor, the FE210 delivers up to 2500m³/h fan capacity and 1100m³/h extraction at the hood. The compact mobile design allows easy positioning around welding bays and fabrication areas where source capture extraction is required.

The FE210 is available in multiple configurations including articulated extraction arm, flexible hose with magnetic hood or integrated downdraft welding table options depending on the application.

Features:

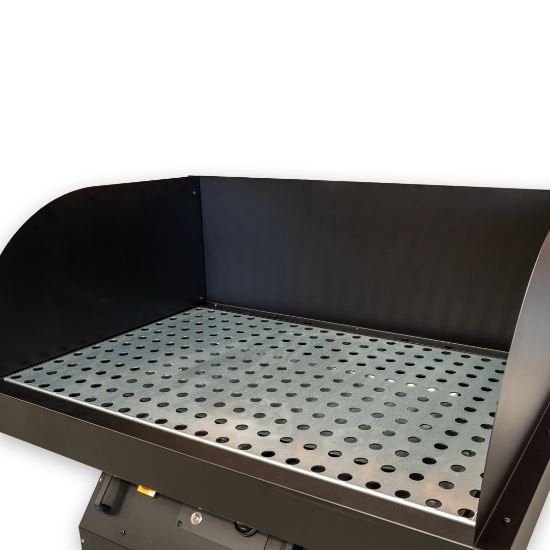

Downdraft Welding Table - The 1200 x 800mm downdraft table captures fumes and dust directly from the work area.

W3 Certified Filtration - Captures welding fumes with filtration efficiency greater than 99%.

Filter - High efficiency Sintexx Plus nanofibre filter media.

Easy Filter Cleaning - The cartridge filter can be cleaned without removal for faster, cleaner maintenance.

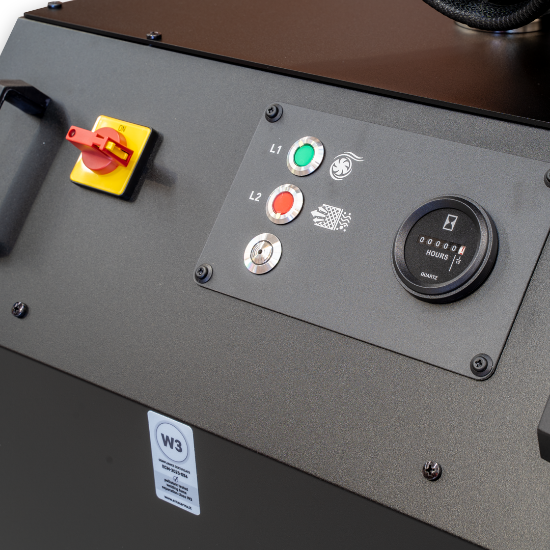

Clogged Filter Alarm - Differential pressure switch alerts the operator when filter servicing is required.

Anti-Spark and Trap Dust Draw - Helps protect the filter from sparks and makes collected dust easier to remove.

Mobile Workshop Design - Compact, wheeled design makes it easy to move around fabrication bays and work areas.

Powerful 2500m³/h Fan Capacity - Driven by a 1.1kW single phase motor for reliable extraction performance.

Model: FE210TABLE - 1200mm x 800mm Downdraft Welding Table.

Made in Italy

Specifications:

Motor Power: 1.1kW - 230V
Filtration Efficiency: W3 >99% UNI EN ISO 21904-1/2:2020
Welding Table: 1200mm x 800mm
Filter Area: 6.3m² Cartridge
Extraction At Hood:  1100m³/h
Fan Capacity:  2500m³/h
Filter Media: Sintexx Plus - High Efficiency Corrugation and Nanofiber lining
Main Unit Dimensions:  561 x 765 x 740mm (excl Table Top)



Download Strata FE210TABLE User Manual Here

Download Strata FE210TABLE Brochure here
