Euroboor  |  SKU: TC3510

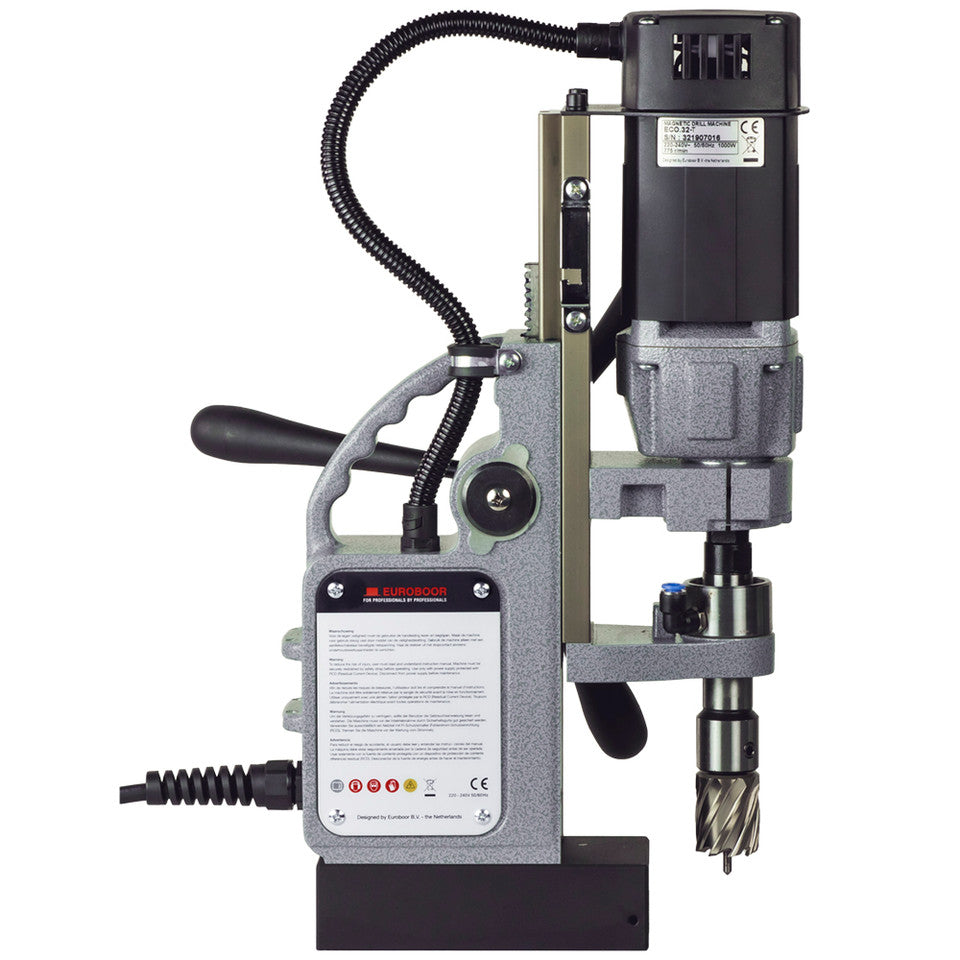

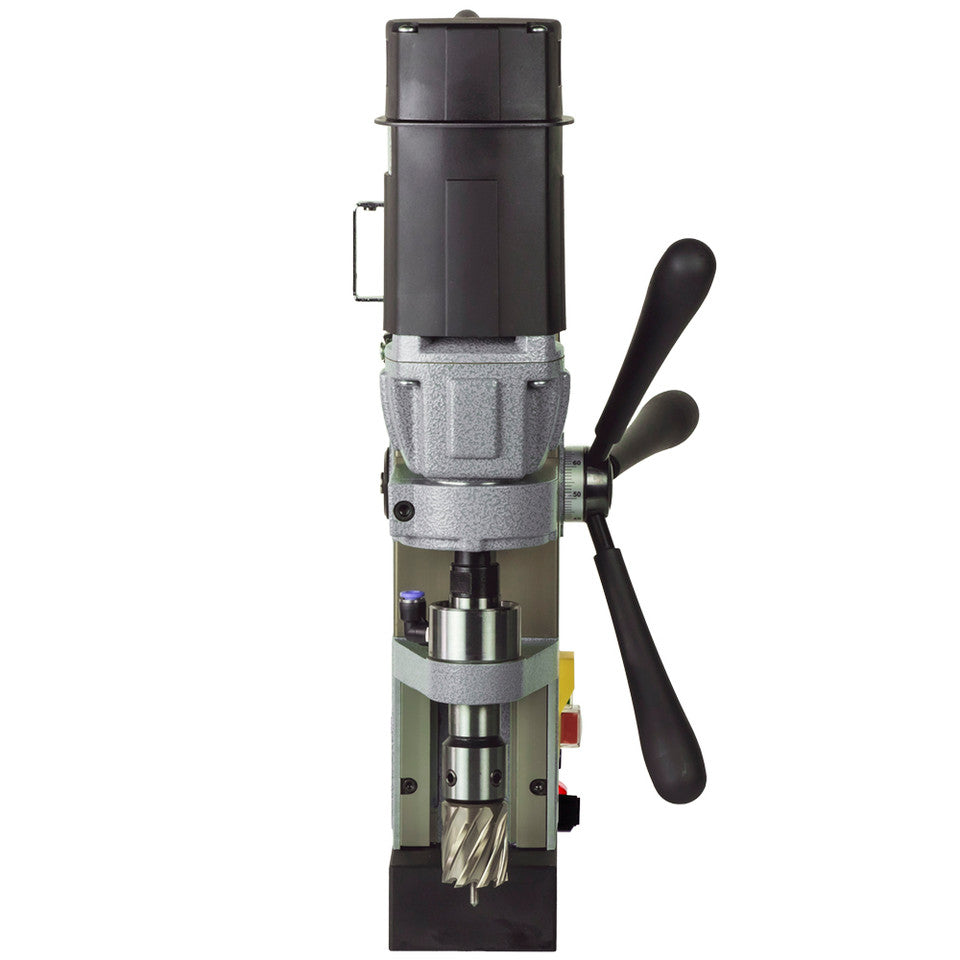

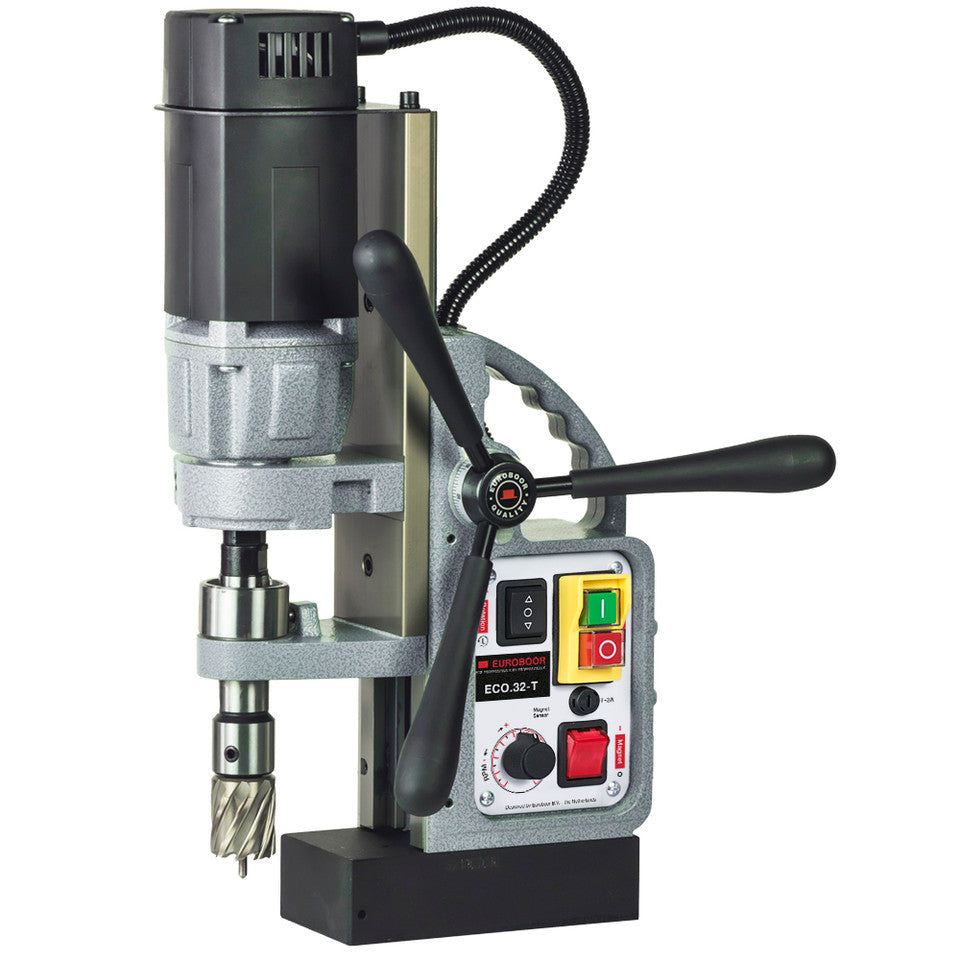

Euroboor ECO.32-T Magnetic Base 32mm Drill And Tap Machine With Variable Speed

$2,329.00
Tax included Shipping calculated at checkout.

Euroboor ECO.32-T The Best All Rounder Tap And Drill Machine With Magnetic Base

Compact, powerful, and built for precision, the Euroboor ECO.32T is your go-to magnetic drill for on site steelwork and fabrication.

The annular cutter capability ranges from 12mm to 32mm and twist drills from 1mm to 13mm can be used. Countersinking can be done between 10mm and 40mm, and tap sizes include M3 to M12 threads.

It has a generous 150 mm stroke for deep hole drilling.

It's no-load speed ranges from 100–600 rpm, and under load it rotates at approximately 225 rpm.

The ECO.32T delivers exceptional performance in a lightweight 11kg frame.

The dual direction motor makes tapping effortless, while the strong 1,500 kg magnetic base keeps your drill rock solid even in vertical or overhead positions.

With integrated lubrication, a quick-release cutter system, and Euroboor’s signature build quality, the ECO.32T gives you professional results wherever the job takes you.

A high precision height adjustment system further aids consistent accuracy and low maintenance needs.

The unit also features a visible LED indicator for magnet status, supporting safe operation and alignment.

Features

Quick-Connect Cutter System: Enables fast and user-friendly tool changes.

One-Speed Gearbox and Weldon Shank (19 mm / ¾″) spindle simplifies operation.

Detachable, Reversible Ratchet Feed Handle: Allows adaptation for either left or right-handed use.

Magnetic Adhesion Force: Approximately 1,100 kg (or ~2,645 lbs), powered by a dual-coil CNC-machined 2-way magnet, which enhances performance while reducing energy consumption and heat generation.

Integrated Cooling & Lubrication System: Includes a lubrication bottle with magnetic attachment; delivers effective tool cooling and ease of use.

Specifications:

Annular cutting Ø 12 - 32 mm
Twist drilling Ø 1 - 13 mm
Countersinking Ø 10 - 40 mm
Tapping Ø M3 - M12
Length 320 mm
Width 210 mm
Height 370 - 512 mm
Stroke 150 mm
Weight 11 kg*
Magnet (l x w x h)  160 x 80 x 42 mm
Magnetic force  1,500 kg
Motor power 1,000 W
Total power 1,050 W
Speed (no load)  775 rpm
Speed (load 1,000 W)  440 rpm
Spindle (Weldon) 19.05 mm
Voltage 220 - 240 V / 50 - 60 Hz



Includes:

Case

Ratchet feed handle

Lubrication / Cooling system

3 x Tap Holders - M8, M10, M12

4 x Allen Keys - 2.5, 3.0, 4.0, 5.0 (mm)

Protection Guard

Safety Chain

User Manual

Hearing protection, safety goggles and safety gloves

Download Data Sheet Here

Download User Manual Here
