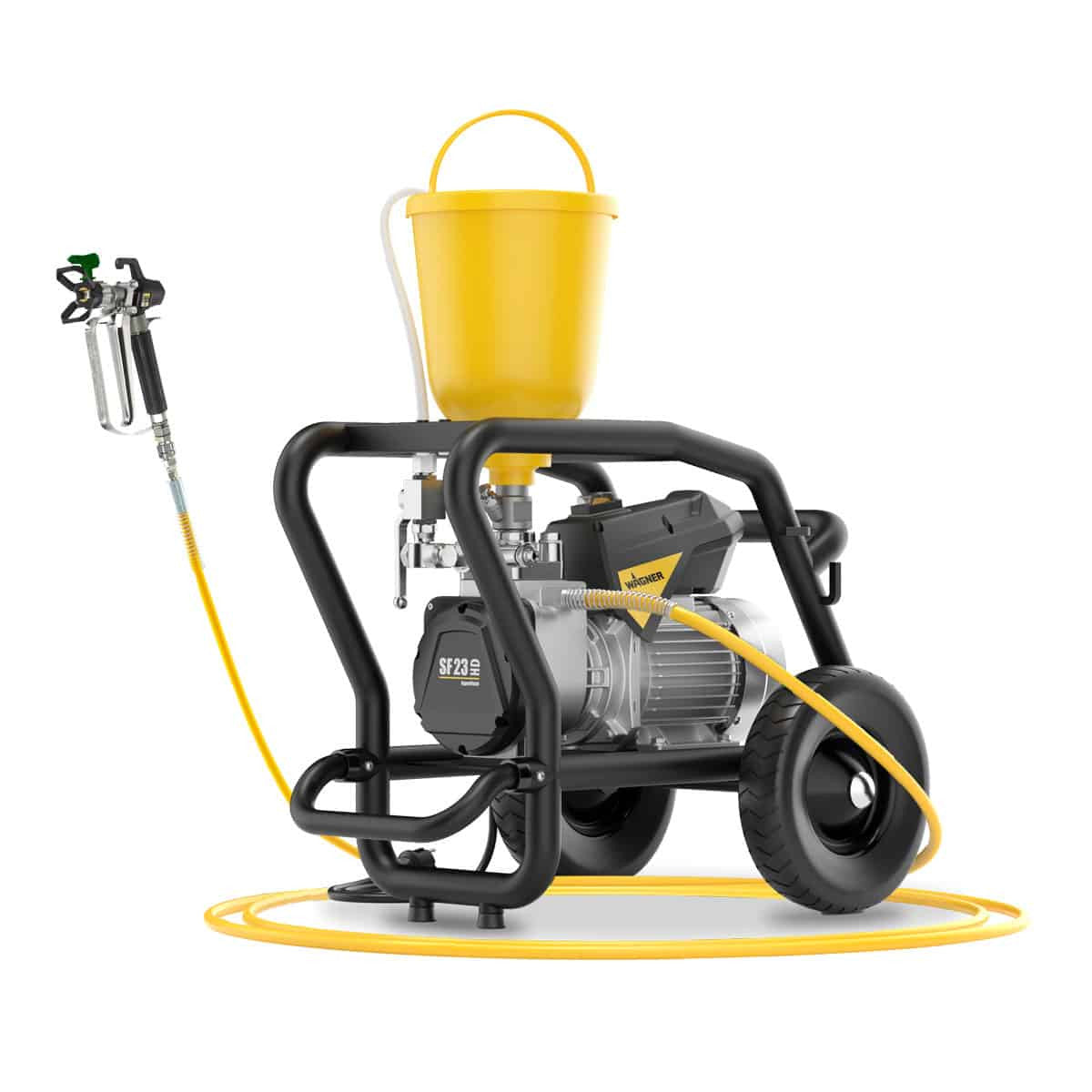

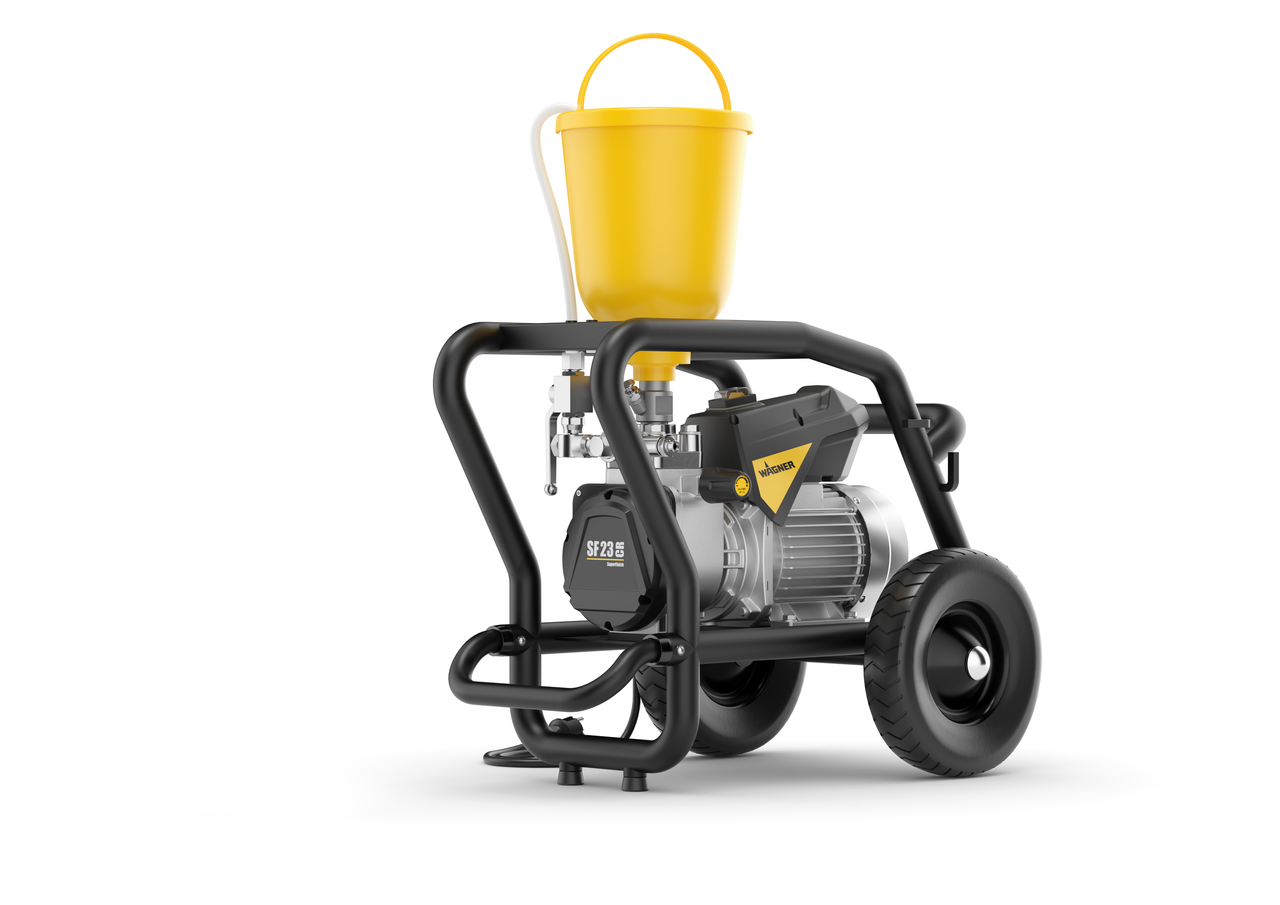

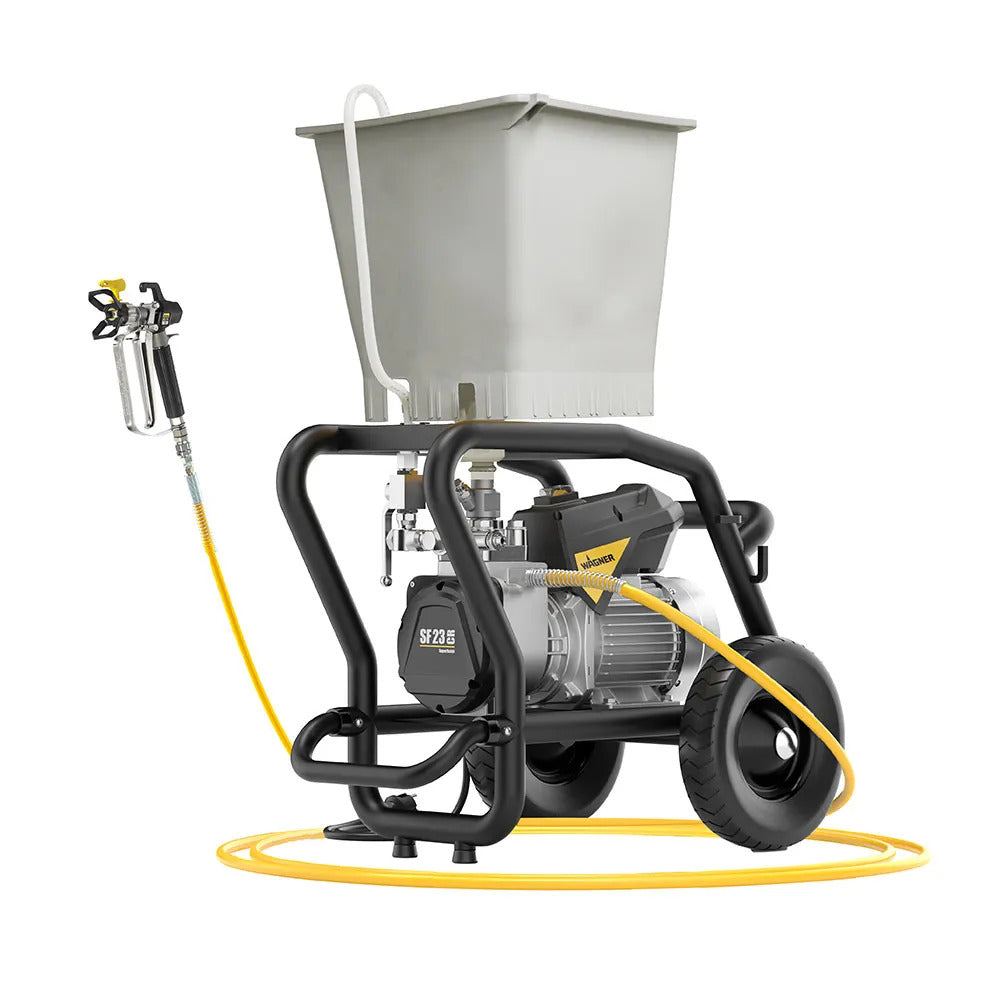

Wagner SF23 HD SprayPack - Available With 5L Or 20L Hopper

$5,490.00
Tax included Shipping calculated at checkout.
Size

Wagner SF23 HD SprayPack - Available With 5L Or 20L Hopper - 5 Litre Hopper is backordered and will ship as soon as it is back in stock.

Wagner SF23 HD SprayPack - Choose Either 5 Or 20 Litre Hopper

PS 3.21 Spraypack
A compact solution for small airless applications. The entry level class for the professional painter. Well suited for virtually any indoor application with airless gun or internally fed paint roller.
Highlights:
Clean
The flexible suction system, EasyGlide and EasyClean can be stored directly on the unit.
Reliable
The inlet valve depressor guarantees a high operating reliability. One press of the button and the valve is free.
Maintenance made easy
With the push of a button the piston is oiled and the packings are conserved. The "Easy Glide" machine oil can be refilled easily. It forms a protective film around cylinder and piston and protects the unit against premature wear.
Technical data:
Max Flow Rate: 2.0 L/min
Max Tip Size: 0.023"
Max Pressure: 3335 psi
Motor Rating: 0.8 HP/ 0.65kW
Weight: 1

Please Contact Us prior to purchasing this product to ensure we can provide you with current availability and/or offer alternative options available for purchase.

Ideal for high-volume residential, roofing, commercial, maintenance, and industrial jobs, the SF23 HD provides rock-solid stability and dependability.

Built to last with a sturdy frame and and easy to move with its robust shock-absorbing wheels.

Specifically designed for use as a pump for heavy duty spraying, it comes complete with an AG-14 Heavy Duty Airless gun featuring an insulated handle.

The SF23HD supports up to 90m of hose, this gives you an impressive amount of reach, ideal for large work sites and roofs.

Diaphragm pumps do not pulsate, guaranteeing perfect results with constant pressure.

Will easily handle a wide variety of materials, from thin liquids to high-viscosity paints. QLS technology and low stroke frequency put less stress on the components, significantly extending the service life of the pump and reducing maintenance costs.



Features:


Thermal Overload Protection

On/Off switch contains a thermal overload, which protects the electric motor in the event of low voltage supply.

Ease of Use

Infinitely variable pressure regulation from 0 to 3600 PSI.

Large shock absorbing wheels for ease of moving over those uneven worksites.

Innovative QLS Technology

Quality long stroke with optimized hydraulics for high performance and longer service life.

Brushless Motor

Requires no maintenance.

Built To Work With Superior Components

Stainless steel paint head for long life and toughness against harsh materials

Stainless steel valve with pressure regulator for control of smooth flow of material.

Push and ball valve for a direct prime and application procedure.

Telescopic Handle

Perfect for easy storage and transport.

Specifications:

Power: 1.3Kw

Pressure: 3625 psi

Max Tip Size: 0.023

Flow Rate: 2.61l/min

Max Hose Length: 90m

Annual Usage: 8000 Litres

Supplied Complete With:

15m Airless Hose

AG-14 Heavy Duty Gun With Insulated Handle.

517 HEA Pro Tip

Complete with 3 + 2 Year Commercial / Contractor Warranty

Optional Extras:

TempSpray Heated Hose

Flexible Suction Kit

Click Here For More Info

All Prices Include GST

Buying an airless spray unit is an investment and an expensive one at that, if you have any questions, doubts or just want some no pressure advice please get in touch. Contact Matt

Special Order, Please Contact Us For Current Availability

We welcome collection from our Auckland warehouse, however please note we also have bulk warehousing in Christchurch and not all items are available for immediate pickup.

Collection is typically available within 48 hours.

We recommend checking with us first if urgent collection is required.

Please call 09 475 6656 to confirm.
